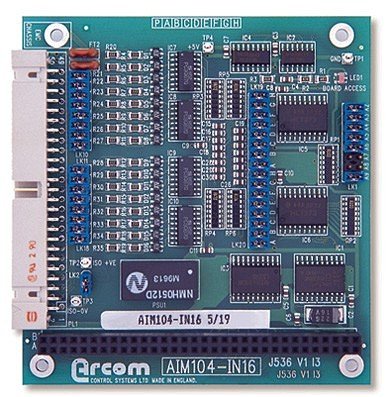

The AIM104-IN16 is an 8-bit PC/104 module providing 16 opto-isolated inputs. The module provides electrical isolation of up to 1500V between your PC/104-based control system and the electrical system you are monitoring. The isolation between adjacent channels is limited to 100V by the wiring and connectors.
The isolated supply may be sourced from either the on-board DC/DC converter or an external supply, so that there are two variants:
-AIM104-IN16: with external power source
-AIM104-IN16-DC/DC: with a +24V isolated DC/DC converter
The board includes jumper options for each channel to use on-board supply, and jumpers to select a 10ms input debounce filter.
