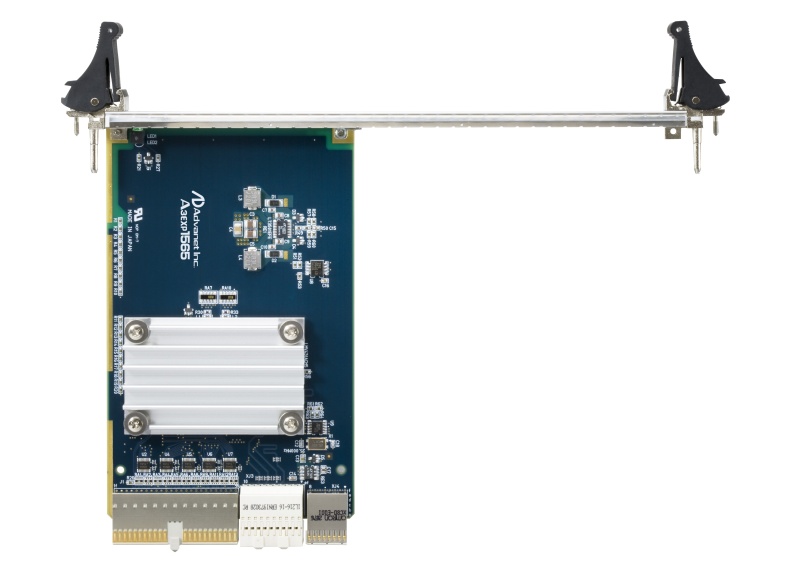

A3EXP1565

cPCIe/cPCI bridge board

The A3EXP1565 is a bridge board that allows a bus to be converted from CompactPCI Express to CompactPCI. By doing so, CompactPCI Express and CompactPCI can co-reside in the same system.

Not recommended for New Designs

HIGHLIGHTS

  • Capable of conversion from x4-lane PCI Express bus to 32-bit PCI bus (66/33MHz)
  • Equipped with an Intel® 41110™ bridge device
  • 3U-size board

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The A3EXP1565 is a bridge board that allows a bus to be converted from CompactPCI Express to CompactPCI. By doing so, CompactPCI Express and CompactPCI can co-reside in the same system.
In combination with the A3EXP1565, a CompactPCI Express bus-compatible peripheral board can be adopted as a CPU board and it can be used with a CompactPCI-capable board.
Backplanes and sub racks are designed for use in combination with the A3EXP1565 are also available.
