A6pci2613A

12-bit resolution CompactPCI (cPCI) A/D converter with 64-channel single-ended or 32-channel differential

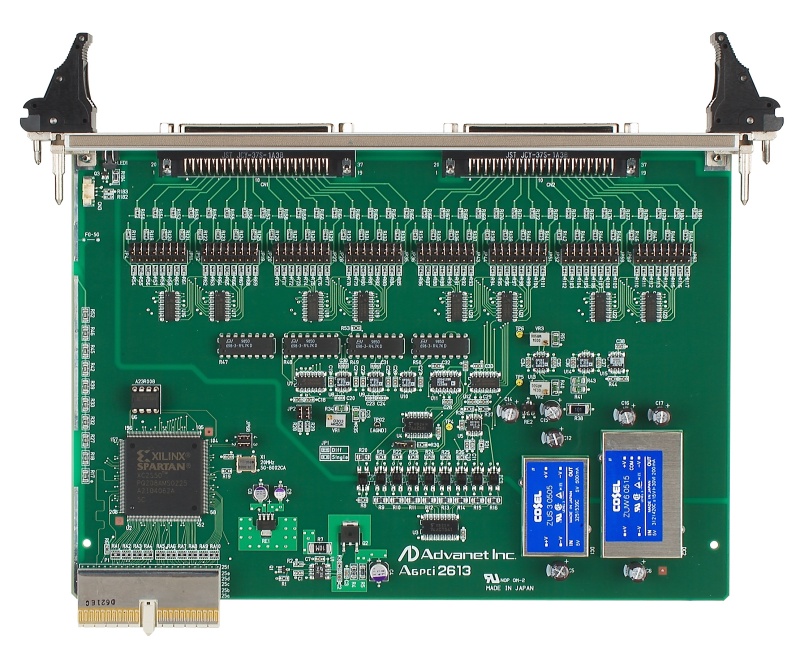

The A6pci2613A CompactPCI board is a 12-bit resolution A/D converter. It provides either 64-chennel single ended or 32 channel differential input.

Not Recommended for New Design

HIGHLIGHTS

  • 64 single-ended or 32 differential inputs
  • 512-word FIFO
  • Built-in pacer clock
  • Photo coupler isolation

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The A6pci2613A CompactPCI board is a 12-bit resolution A/D converter.
Input Features
It has either 64-channel single ended or 32 channel differential input.
Input voltage range can be set to ±10V, 0 to +10V, 0 to +5V or +1 to +5V for all channels at once. 0 to 20mA or 4 to 20mA current mode can be set by jumper.
Analog input and digital system are isolated by photo-coupler.
Interrupt
Interrupt can be issued to the CPU after completion of A/D conversion.
All channels can be scanned automatically using a software trigger.
Other Features
Built-in pacer clock allows continuous scanning at a constant frequency for processing. Built-in 512-word FIFO enables the storage of eight batches of data for single-ended (64-channel) input.
The board provides full HotSwap support.
