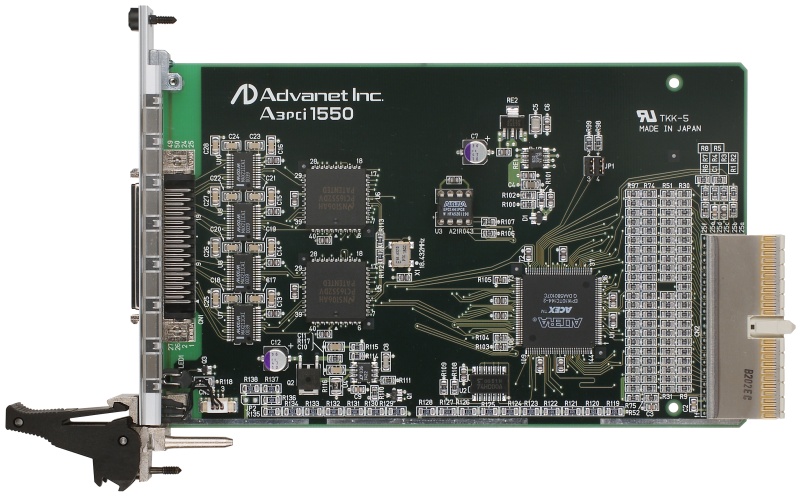

The A3pci1550 is a 4-channel serial interface CompactPCI board.
The board is equipped with two National Semiconductor® PC16552™ serial controllers.
In the front panel, there is a half-pitch Dsub 50-pin female connector.
Option Board
AP401 PC board for distributing four-channel signals from the main unit connector is available as an option.
Hot Swap
The board performs hot swap capability. Both CPU board and backplane support HotSwap.

Architecture:

• CompactPCI

Serial Ports:

• Number of channels: 4
• Communication system: asynchronous
• Signal level: TIA/EIA-232E standard-compliant
• 2x National Semiconductor® PC16552™ serial controllers
• Baud rate: up to 115.2kbps
• Connector: Half-pitch D-sub 50-pin female connector
• Control line: DCD, DSR, CTS, DTR, RTS, RI

Bus:

• 32-bit CompactPCI interface

Hot Swap:

• Support

Power Supply:

• Single +5V DC

Mechanical:

• Dimension: 3U – 100 x 160 mm (3.94” x 6.30”)
• Pitch: Single Slot – 20.02 mm (0.79”)

Operating Systems Supported:

• VxWorks®, Windows 98®, Windows NT®, Windows 2000®, Windows XP®

Option:

• AP401 PC board for distributing four-channel signals from the main unit connector
