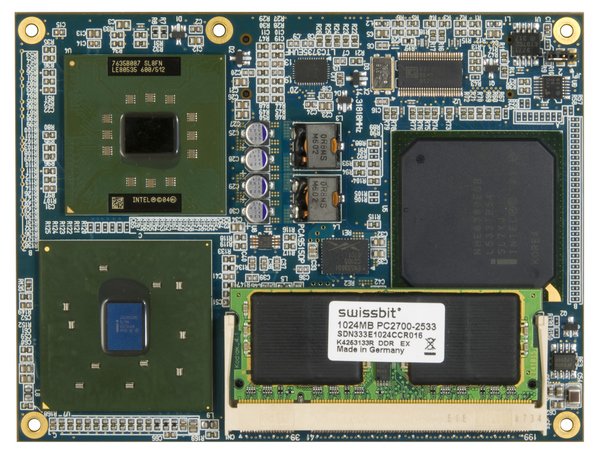

CPU board of COM Express basic size High-performance, low-power, and small CPU board produced in Japan adopting Intel® CeleronM™ processor. It is a modular board so carrier board can be freely designed for various size and various combinations of connectors.
It feartures 855GME™ and 6300ESB™ chip set.
It has a main memory of up to 1GB max with ECC function to correct 1 bit of error automatically.
I/O functions and bus signals are collected in the high-density connector on the same standard as COM Express, which should be stacked on the carrier board (I/O base board) in use.

Architecture:

• Eurotech form factor

CPU:

• Intel® Celeron M processor (600MHz/1.0GHz/1.3GHz)
• L1 cache: 32KB/32KB, L2 cache: 512KB

Memory:

• DDR333-compatible SO-DIMM socket x 1: 1 GB max. with ECC support
• Boot ROM: 1 MB of firmware hub FLASH memory

System I/O:

• x2 serial RS232 ports
• x4 USB 2.0 ports
• x2 Serial ATA
• x2 IDE
• UXGA (1600 x 1200), compatible VGA
• x1 AC'97 (Component 2.2 standard)
• x2 PCI bus interface (32bit/33MHz)
• LPC, SMBus , LVDS, DVI, GPI x 4, GPO x 5

RAS Function:

• Watch Dog Timer containing 6300ESB™ is usable.
• Monitoring temperatures of CPU interior and board around CPU is enabled.
• Monitoring CPU core voltage and voltage of 5V/3.3.V/2.5V is enabled.

RoHS:

• Compliant

Power Supply Voltage:

• Single +5V DC

Mechanical:

• Dimension: 95 x 125 mm (3.74” x 4.92”)

Operating Systems Supported:

• Linux®, Windows NT®, Winodws 2000®, Windows XP®
