The DuraCOR 1400 Compact Rugged Vehicular Computer is the ideal solution for installing a powerful and ruggedized system for context aware and audio I/O applications in vehicles. It can be deployed in harsh environmental conditions where the use of rugged and compact devices is a must.
Interfaces
The DuraCOR 1400 is equipped with 4 audio inputs and 4 audio outputs channels to manage all the on board audio sources and outputs (driver microphone, radio, TV audio and many more).
Five Fast Ethernet ports allow the connection of devices such as Ethernet cameras with integrated signal compression for video surveillance applications.

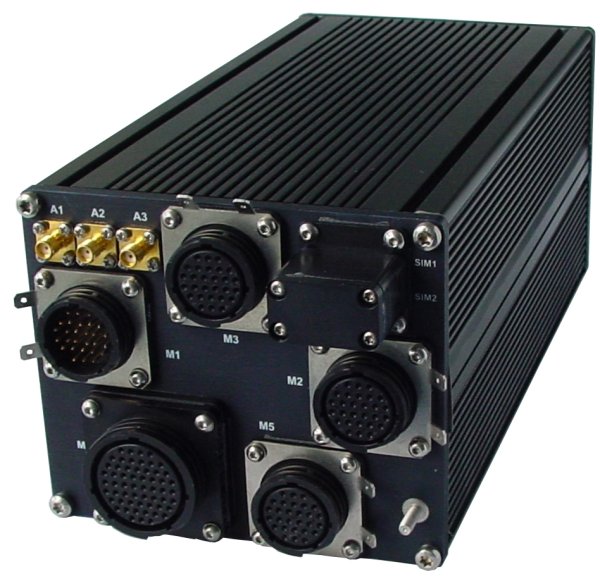

The rear panel of the system is dedicated to the field application signal interfacing. The front panel is dedicated to maintenance interfaces: after removing a protective plate, debug connectors are available. Moreover these interfaces are available without disconnecting the system from the field.
Thanks to the various I/O interfaces it can be integrated in any location within a vehicle for connecting various kinds of peripherals.
Optionally, the DuraCOR 1400 can be provided with advanced remote diagnostics and SMS configuration and recovery capabilities.

CPU & Memory:

• DC 1400-01 Intel® Atom™ @ 1.6 GHz - RAM: 1 GB - Flash: 2 GB Flash

Mass Storage:

• 50GB automotive class HDD

IP Rating:

• IP 65 (NEMA 4X)

Standard:

• The Duracor products can be certified to be compliant to one or more of the following norms:

  - EN 50155 (Humidity, Ambient air temperature, Storage temperature)
  - EN61373 (Vibration & Shock)
  - EN 50155 (Power supply voltage interruption, Surges, Isolation resistance)
  - EN 50121, EN 61000, EN 55011, ECE ONU reg.10 (Immunity, Emission)
  - EN 60950 (Safety)

WLAN:

• Integrated IEEE 802.11 a/b/g - external antenna

WWAN:

• GSM/GSM-R/GPRS/UMTS/HSDPA/HSUPA
• External SIM holder
• External antenna

GPS:

• 12 channels high sensitivity - external antenna

Audio:

• 4 Stereo Line Inputs
• 4 Stereo Line Outputs

Video Out:

• Analog RGB (VGA 640 x 480 pixels)

Ethernet:

• 1x 10/100Mbit Ethernet

USB:

• 2x Hi-Speed USB 2.0

Serial Port:

• 9x RS-232 Serial port
• 1x RS-422 / 485 Serial port

Other Interfaces:

• 8 Isolated Digital Inputs (1 reserved as “ignition switch input”)
• 7 Isolated Digital Outputs
• LEDS: Power on, Power good, 4 User programmable
• Mini-Din for keyboard and mouse
• DB 15 Analog CRT Monitor
• Reset button
• I2C port for status monitor and debugging

Power Supply:

• 9 to 36 VDC

Power Consumption:

• <15W max

Mechanical:

• Dimensions: 255 x 129 x 109 mm (10.04” x 5.08” x 4.29”)
• Weight: approx 2.5 Kg

Operating Temperature:

• -25 to +55°C
• +70°C for 10 min

Humidity:

• 0 to 95% non-condensing

Operating System:

• Windows XP Embedded®, Wind River Linux 3.0®

Options:

• Everyware Software Framework

• Cable set with standard connectors for an easy peripherals and I/O connection
• Wi-Fi dual band antenna
• GPS magnetic mount antenna kit
• HSDPA 5 band antenna kit
