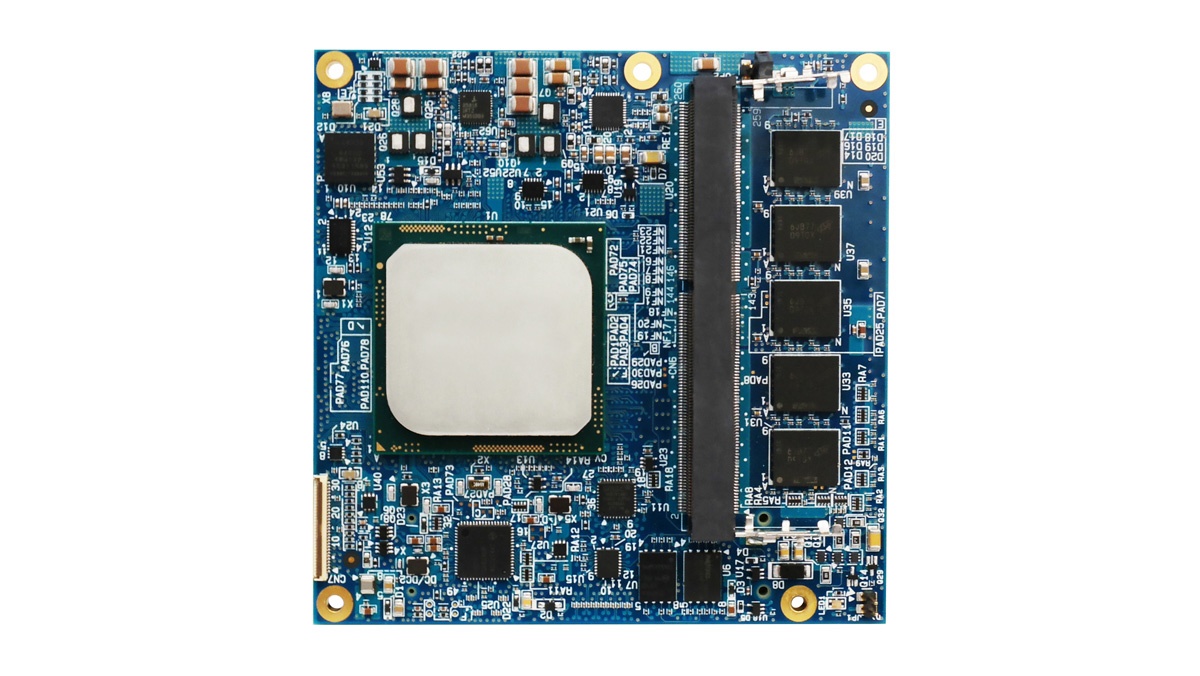

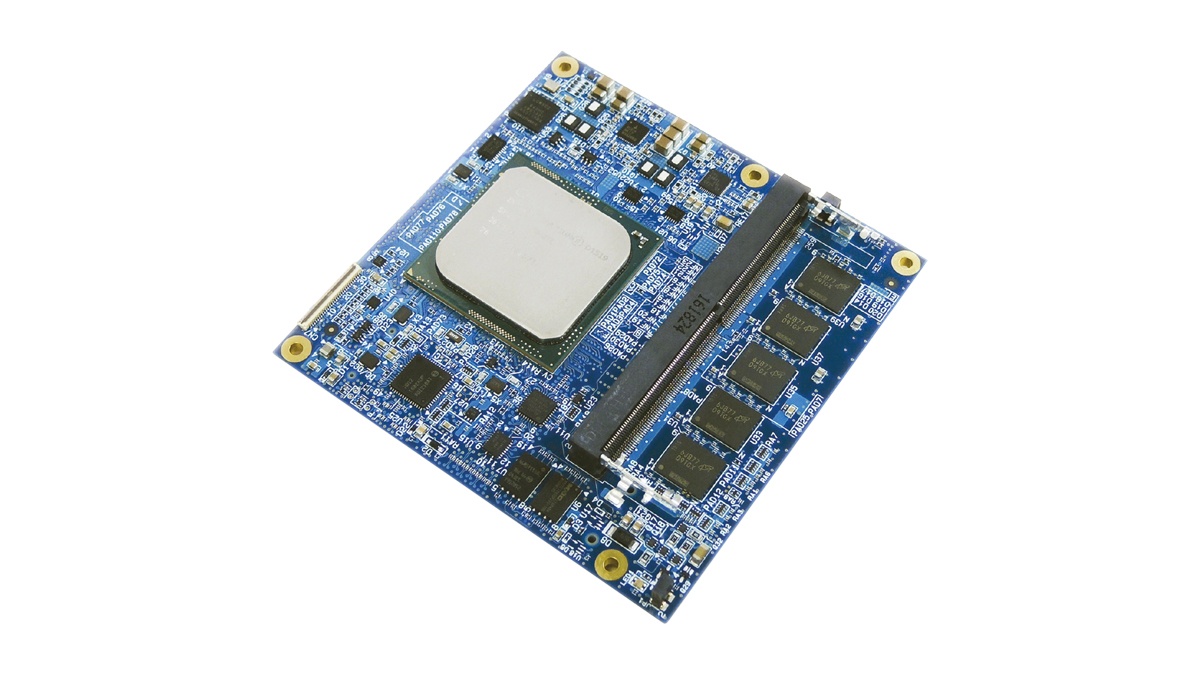

The CPU-161-18 is a rugged COM Express module that combines a high performance and truly embedded CPU with an innovative hybrid RAM architecture that offers the ruggedness of soldered memory and the expandability of SO-DIMMs.
The CPU-161-18 is a COM Express module that combines a high performance and truly embedded CPU with an innovative hybrid RAM architecture that offers the ruggedness of soldered memory and the expandability of SO-DIMMs. The standard configuration provides 8GB of memory soldered directly on the PCB and supports up to 24GB DDR4 RAM with ECC error correction through a SO-DIMM slot, targeting use cases where extreme ruggedness is required, and those that need a large memory.
The CPU-161-18 can be configured with any member of the Xeon/Pentium D-1500 family; standard versions support extended temperature CPUs, such as the Pentium D-1519 and the Xeon D-1559, closing the gap between traditional embedded applications and servers.
Compatible with existing Type 6 carrier boards, the CPU-161-18 is a headless unit that provides a fast upgrade path to existing projects and that allows the creation of new high-performance ones: a notable feature of this Compact size module is the availability of a x16 PCIe Gen 3 port in addition to the x8 one, a characteristic that is more commonly found only on larger modules; other features include: Gigabit Ethernet, four SATA 3.0 ports, four USB 3.0 and seven USB 2.0 interfaces.
Supported operating systems include Yocto Linux and CentOS; moreover, the CPU-161-18 supports Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT gateways.
Professional Services are available for the CPU-161-18, starting from BIOS personalization and including carrier board design, system development and production. Deep module customization, such as feature changes are also available.
Ordering code: CPU-161-18-XX | |||||
---|---|---|---|---|---|
XX | -05 | -06 | -07 | -08 | |
PROCESSOR | CPU | Pentium D1519 1.50GHz, 4 Cores | Xeon D-1529 1.30GHz, 4 Cores (IEC 61508 Safety Integrity Compliant) | Xeon D-1539 1.60GHz, 8 Cores | Xeon D-1559 1.50GHz, 12 Cores |
MEMORY | On-board | 8GB DDR4 ECC Memory Down (2133-2400MT/s) | |||
On-socket | 1x DDR4 ECC SODIMM up to 16GB | ||||
STORAGE | Embedded | 2x SPI-Flash (16MB + 32MB), 1x EEPROM (8kB) | |||
SATA | 4x SATA 3.0 (up to 6Gb/s) | 2x SATA 3.0 (up to 6Gb/s) | 4x SATA 3.0 (up to 6Gb/s) | ||
RAID | Factory Option | ||||
I/O INTERFACES | Ethernet | 1x 10/100/1000Mbps | |||
USB | 4x USB 3.0, 7x USB 2.0 (EHCI Supported) | 7x USB 2.0 (EHCI Supported) | 4x USB 3.0, 7x USB 2.0 (EHCI Supported) | ||
Serial | 2x UART (TX/RX) | ||||
Digital I/O | 1x 8bit Digital I/O | ||||
PCI Express | 1x PCIe x16 (Gen 3), 4x PCIe x1 (Gen 2), 1x PCIe x4 (Gen 2) – Non-transparent bridge or Transparent bridge (Switchable) | 1x PCIe x16 (Gen 2) – Non-transparent bridge or Transparent bridge (Switchable) | 1x PCIe x16 (Gen 3), 4x PCIe x1 (Gen 2), 1x PCIe x4 (Gen 2) – Non-transparent bridge or Transparent bridge (Switchable) | ||
LPC | Yes | ||||
I2C | Yes | ||||
SMBus | Yes | ||||
OTHER | RTC | Yes | |||
Watchdog | Yes | ||||
Security | Intel AES-NI, Intel Secure Key | ||||
Sensors | Temperature Sensor | ||||
POWER | Input | 12V, 5VSBY, 3V_RTC | |||
Consumption | 25W (CPU TDP) | 20W (CPU TDP) | 35W (CPU TDP) | 45W (CPU TDP) | |
ENVIRONMENT | Operating Temp | - 40 to +85°C | |||
Storage Temp | - 40 to +85°C | ||||
Humidity | 35% to 85% | ||||
CERTIFICATIONS | Environmental | RoHS (2011/65/EU) | |||
Compliance | PICMG COM Express R2.1, Type 6 | ||||
MECHANICAL | Dimensions | 95x95mm (LxW) - COM Express Compact |
SOFTWARE | OS | Eurotech Everyware Linux, CentOS 7 (Professional Services: Windows 10 IoT Enterprise, Fedora, Other Linux and RTOS) | |||
IoT Framework | Everyware Software Framework (Java/OSGi) |
