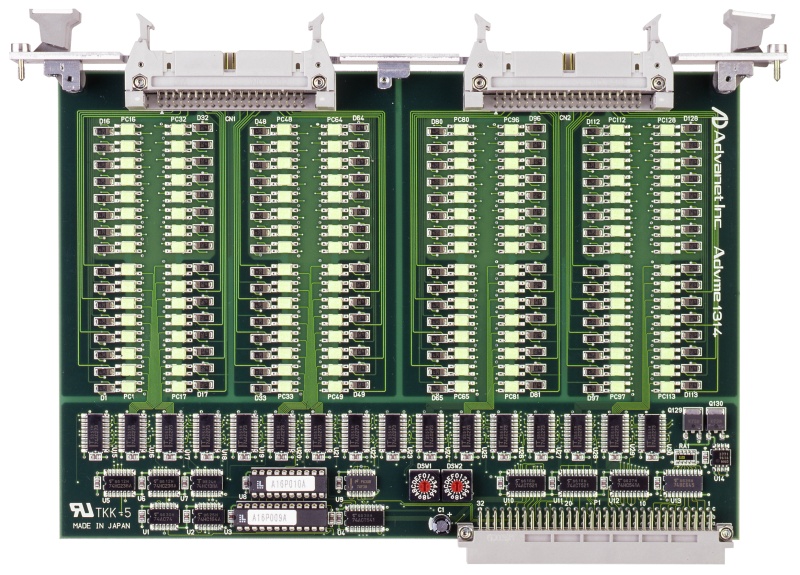

The Advme1314 is a low-cost 128-point digital output VME board. The output is divided into sixteen channels. Each output channel is made up of eight points and has an independent common that allow digital signals to use different power supplies. All output signals are turned off when the power is turned on and when a reset is performed.
Isolation:
Photo-coupler isolation is provided for complete isolation between output channels and between output channels and the system.
Other features:
A device driver and sample program for VxWorks® is optionally available.

Architecture:

• VME compliant

Digital Output:

• Number of Channels: 128 (8 channels per common x16)
• Output voltage tolerance: up to 50V DC
• Output saturation voltage: Up to 1.9V
• Load current: up to 200mA
• Output transistor: 2SD1005 (NEC original)
• Output connector: two MIL-type 40-pin headers

Isolation:

• Isolation method: photo-coupler isolation TLP181GB (Toshiba original)
• Withstanding voltage between output and system: 1500V AC for one minute
• Withstanding voltage between output and channels: 1500V AC for one minute

Bus Interface:

• VME bus
• Width complies with A16 D16/D08(EO) Rev.C.3
• Accessible using AM codes 29H and 2DH

Power Supply:

• Single +5V DC

Power Consumption:

• 1W

Mechanical:

• Dimensions: 6U – 262 x 172 mm (10.31” x 6.77”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 286g

Operating Systems Supported:

• VxWorks®

Options:

• Device driver for VxWorks®

• E-041 DIO Monitor Tool
