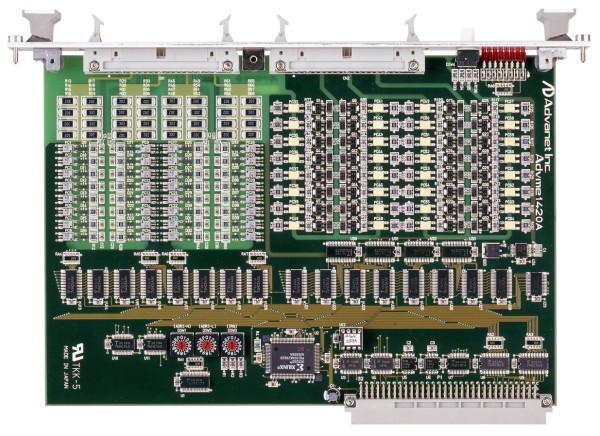

The Advme 1420A is a 32-point high-speed digital I/O VME board. 32-point I/O is divided into four channel each of them is made up of eight points. Each channel has an independent common that allows I/O of digital signals using different power supply modes. This board can be used as an upwardly-compatible replacement for Advme1420.
Isolation:
Photo-coupler isolation is provided between input channels and between input channel and system.
Other features:
Interrupt can be issued to one of the VME interrupt request lines IRQ1 to IRQ7. A switch on the panel can be used to select each of the 8-point channels to be displayed by LEDs.
A device driver for VxWorks® is optionally provided. A sample program is available.
Architecture:
Digital Input:
- Number of channels: 32 channels (8 channels per common x 4)
- Rated input voltage: 12V to 24V DC
- Rated input current: 6.7mA typical (for 24V DC input)
- Input on voltage: 6V DC or more
- Input off voltage: Up to 2V DC
- Can set 8 point interrupt input using DI0 to 7
Digital Output:
- Number of channels: 32 channels (8 channels per common x 4)
- Rated output voltage: Up to 50V DC
- Output saturation voltage: Up to 1.9V DC
- Load current: Up to 200mA
- Output transistor: 2SD1005™ (NEC®) or equivalent
I/O Connector:
- Two MIL-type 40-pin headers
Isolation:
- Method: photo-coupler isolation
- Photo-coupler: TLP181GB™ (TOSHIBA®) or equivalent
- Withstanding voltage between I/O and system: 1500V AC for one minute
- Withstanding voltage between I/O and channels: 1500V AC for one minute
Bus Interface:
- VME bus
- Width complies with A16 D16/D08(EO) Rev.C.3
- Accessible using AM codes 29H and 2DH
RoHS:
Power Supply:
- Single +5V DC (supplied by VME bus) up to 1A
Power Consumption:
Mechanical:
- Dimensions: 6U – 262 x 172 x 20 mm (10.31” x 6.77” x 0.79”)
- Pitch: Single slot – 20.02 mm (0.79”)
- Weight: 254g typical
Operating Temperature:
Humidity:
Operating Systems Supported:
Options:
- Device driver for VxWorks®
- Sample program
