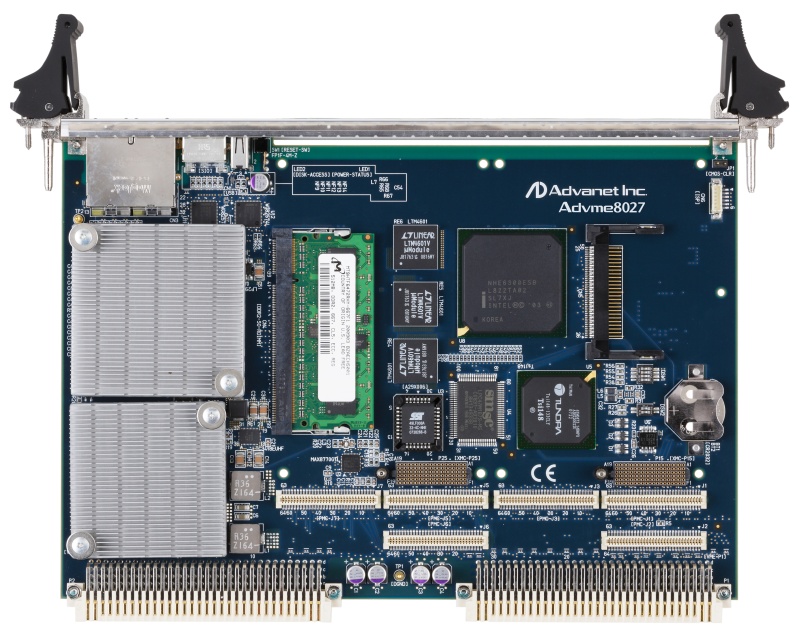

The Advme8027 is an Intel® Core2Duo™ processor L7400 integrated 6U VME bus single board computer with the single slot width. The L7400 CPU operates on a frequency of 1.5GHz and incorporates 32K bytes of data cache, 32K bytes of L1 instruction cache, and 4MB bytes of L2 cache for data/instruction.
Interfaces
The main memory is a DDR2-400-capable SO-RDIMM and is expandable up to 2GB. It ensures high reliability because of the SEC/DEC/ ×4SDDC function of server chip set E7520™.
It is equipped with two Gigabit Ethernet channels, an USB port, a single CompactFlash socket and two PMC/XMC slots on board.
Advme8027 has both VME64x and 2eSST capability of VME bus standard. And the board can be used either as a system controller or as a non-system controller, by automatic slot type recognition.
Architecture:
CPU:
- Processor: Intel® Core2Duo™ L7400 (1.5GHz)
- L1 cache: 32kB/32kB, L2 cache: 4MB for data and instruction
Chipset:
- Memory controller: Intel® E7520MCH™
- I/O controller: Intel® 6300ESB™
- E-super I/O chip: LPC47M107™
Memory:
- SO-RDIMM DDR2-400: 512MB to 2GB with ECC support
- Boot ROM: FWH-FLASH memory: 1MB
- Serial EEPROM: 2kb
- One CompactFlash socket
Ethernet:
USB:
Serial Port:
- 1x COM port with RJ-45 connector
PCI-VME Bridge:
PMC Slot:
- Two slots
- VIO= 3.3V
- 64bit
- 33MHz
- Both slots support XMC, one x8PCIe each of them
Watchdog Timer:
- Time out can be programmed from 131ms to 16.8s
Bus:
- VME bus specification Rev.C.3
- Width complies with: A16/A24/A32/A64 D8/D16/D32/D64
- DMAC: 2ch
RoHS:
Power Supply:
Power Consumption:
Mechanical:
- Dimension: 6U – 160 x 233.35 mm (6.30” x 9.19”)
- Pitch: Single slot – 20.02 mm
- Weight: 420g
Thermal Monitor:
- Monitors the CPU junction temperature
- Monitors the PCB surface temperature
Operating Temperature:
Humidity:
Operating Systems Supported:
