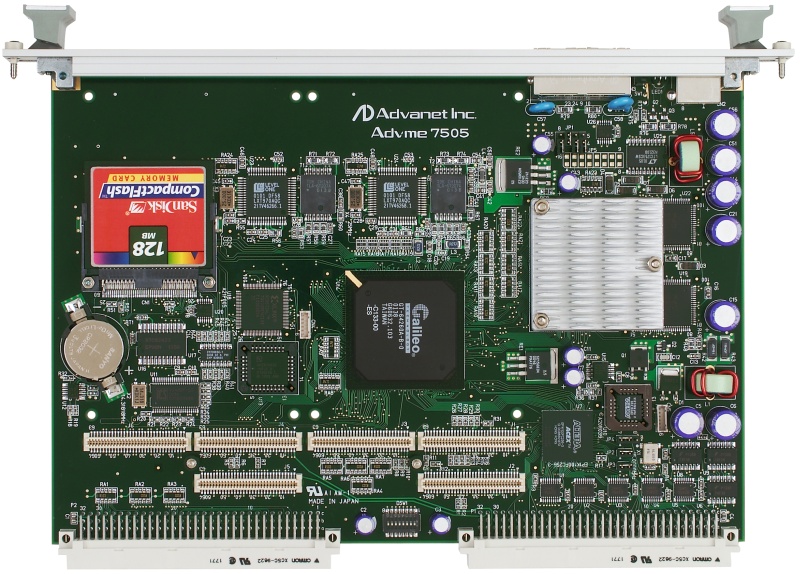

Advme7505

VME CPU board equipped with PowerPC® G4 MPC7410™

The Advme7505 is a VME 6U CPU board equipped with PowerPC® G4 MPC7410™ (500MHz) processor. It features two PMC slots and a CompactFlash socket. The PCI-VME bridge used is NARUTO™. It provides also a Marvell® GT-64260™ system controller.

Not recommended for New Design

HIGHLIGHTS

  • PowerPC® G4 MPC7410™ (500MHz)
  • NARUTO™ as PCI-VME bridge
  • CompactFlash socket
  • 2x PMC slots

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
The Advme7505 is a VMEbus CPU board (6 U size, single slot width) equipped with a Freescale PowerPC® G4 MPC7410™ (500MHz) processor. It is equipped with 2MB L2 cache for high performance. A GT-64260B™ is a system controller which enables DMA between the main memory and external bus. The VME bus bridge used is an Advanet® NARUTO™.
Interfaces:
I/O interfaces include two 100/10 BASE-TX Ethernet ports and two serial ports.
Memory:
In addition, a wide variety of memory technologies such as SDRAM (option of between 128MB and 512MB, ECC support), CompactFlash, FlashROM, SRAM, EEPROM are available for use.
