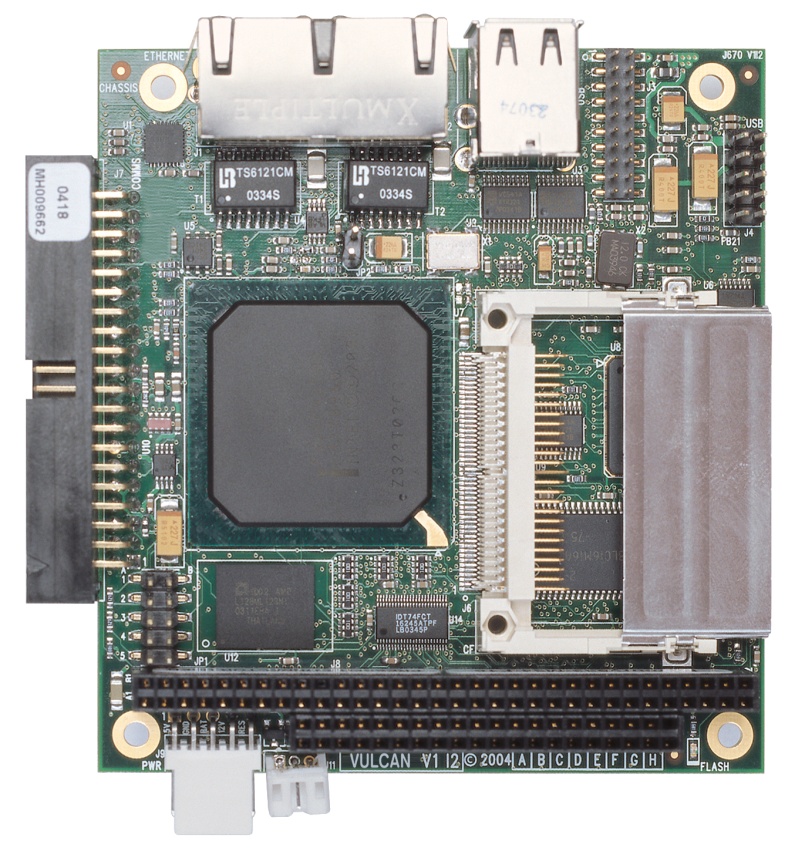

The VULCAN is a low power PC104 compatible single board computer based on the Intel® XScale IPX425™ network processor.
Interfaces
The IXP425™ is an implementation of the ARM compliant, Intel XScale microarchitecture combined with communication peripherals including, 2 high speed Ethernet MACs, hardware accelerated cryptography, 2 high speed serial ports, a local PCI interface and DMA controller.The VULCAN board adds to the IXP425™ features with 2 further serial ports, 4 USB 2.0 ports, real time clock and expansion via the CompactFlash (CF+) port and PC/104 bus.

Architecture:

• PC/104 compliant

CPU:

• Intel® XScale IPX425™ 533 MHz, 32 kB data cache,

RAM:

• 64 MB SDRAM soldered on board
• 256kB battery-backed SRAM

Flash:

• 32 MB AMD MirrorBit Flash soldered on board

Test Support:

• JTAG Interface debugger and Flash download

USB:

• 4x USB 2.0 ports

Network:

• 2x Fast Ethernet controllers (on-board dual-port RJ45 jack with LED’s)

Serial Ports:

• 3x RS232
• 1x RS422/RS485

Other Interfaces:

• RTC
• 256 KB of battery backed SRAM
• 8 buffer digital inputs
• 8 buffer digital outputs

Watchdog Timer:

• 2x Watchdog Timers:

  - Internal to IXP425
  - External with software selectable timeout (1ms – 60s)

Bus:

• PC/104 (ISA)
• Type II CompactFlash (CF+) up to 32 MB cards

Power Supply:

• Single +5V DC

Power Consumption:

• 3.5W typical
• 4.5W max

Mechanical:

• Dimensions: 90 x 96 mm (3.6” x 3.8”) (PCI/104 Form Factor)

Operating Temperature:

• -20 to 70°C (standard)
• -40 to 85°C (extended)

Humidity:

• 10 to 90% non-condensing

Supported Operating Systems:

• Embedded Linux

• Development kit
• Cables kit
