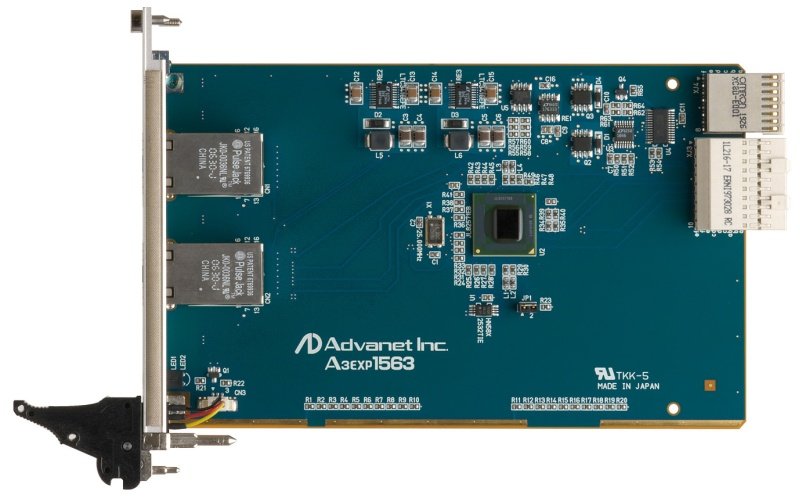

The A3EXP1563 is a Gigabit Ethernet board that supports the CompactPCI Express standard and it is equipped with two 10/100/1000 Base-T Ethernet ports. Peripheral board Type 2 is adopted as a CompactPCI Express board that can be used for ×4 and ×1 lanes. The front panel is compatible with 6U and 3U form factor with 1-slot width.

Architecture:

• CompactPCI Express

Ethernet:

• Number of channels: 2ch
• Communications speed: 10Mbps, 100Mbps, 1000Mbps
• Communications standard: IEEE802.3 10Base-T, 100Base-TX, 1000Base-T compliant
• Ethernet Controller: Intel® 82571EB™
• Connectors: 2x 8pin modular connectors

CompactPCI Express:

• Bus standards:

  - PICMG EXP.0 R1.0 Specification
  - PCI Express Base Specification Rev 1.0a
  - PCI Express Card Electromechanical Specification Rev 1.0a

• Slot Type: Type1 Peripheral Slot, Type2 Peripheral Slot, Hybrid Slot
• Lane width: × 4 or ×1
• eHM key: Female 5
• Misc: ESD discharge strip support

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 5W max

Mechanical:

• Dimension: 3U – 100 x 160 mm (3.94” x 6.30”)
• Pitch: Single Slot – 20.02 mm (0.79”)

Operating Systems Supported:

• VxWorks®, Windows 2000®, Windows XP®
