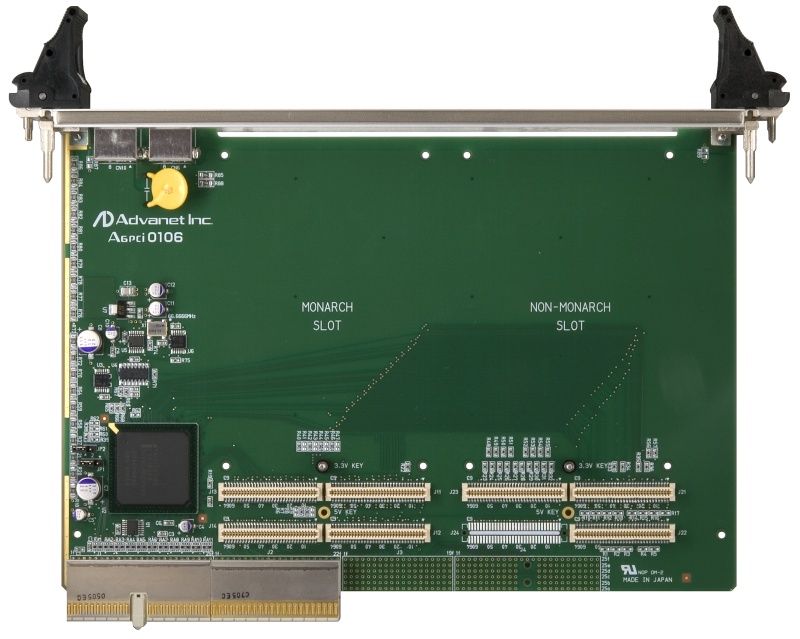

The A6pci0106 is a compactPCI 6U-size PMC carrier board. This board provides two PMC slots and one of them can be used for monarch mode (PrPMC module only). The board features a non-transparent PCI-PCI bus bridge (Intel® 21555™ or equivalent) for 64-bit 66MHz PCI bus support.
Combining a PrPMC module with a PMC module the board can be used as an intelligent-type peripheral slot.
Interfaces
In the front panel there are Ethernet and SIO connectors that support Adpmc7506 boards (G3/G4 PrPMC modules). PMC board J4 connector signals can be wired to CompactPCI bus J3/J4 connectors (connectors are mounting options).

Architecture:

• CompactPCI

PMC:

• Standard: IEEE 1386.1
• Two slots
• One slot is for monarch mode PrPMC (module only)
• 32/64 bit

Bus:

• Bridge: Intel® 21555™
• PCI bus
• Signaling level: +5V, 3.3V DC
• Data width: 32/64 bit
• Address width: 32/64 bit
• Bus speed: 66MHz or less (33MHz when VIO is 5V DC)

Power Supply:

• +5V DC
• +3.3V DC

Mechanical:

• Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 275g
