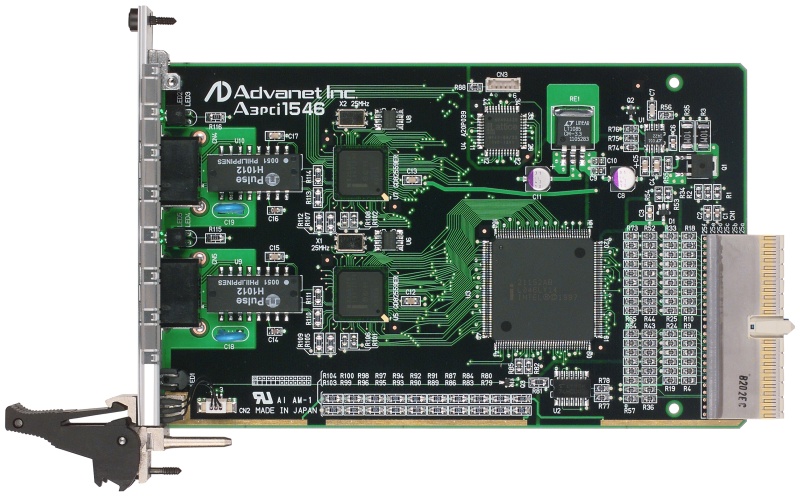

The A3pci1546 is a 3U CompactPCI board that is equipped with 2-channels 10BASE-T/100BASE-TX. It is used when is needed to add Ethernet ports. It is equipped with two Intel® 82559ER™ controllers.
Other Features
The board supports HotSwap capability and provides device driver for VxWorks® (paid option) and for Windows® OS (Intel device driver).

Architecture:

• CompactPCI

Ethernet:

• Controller: 2x Intel® 82559ER™ controllers
• Transmission speed: 10Mbps, 100Mbps (Duplex operation possible for both)
• Connector: 2x RJ-45 connectors
• Indicators: link, activity, speed and HotSwap status LED indicators
• FIFO transmission: 3KB
• FIFO reception: 3KB

Bridge:

• Intel® 21152-AB™
• Data width: 32 bit
• Bus speed: 33MHz
• Signaling voltage: +3.3V/+5V DC
• Space required: 64Bytes in PCI I/O space and 1MB in memory space
• Interrupt line: INTA, INTB

Bus:

• CompactPCI bus
• PCI-to-PCI bridge architecture specification Rev.1.1
• PCI local bus specification revision 2.2
• PICMG 2.0 R3.0 CompactPCI specification
• PICMG 2.1 R1.0 CompactPCI HotSwap specification

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 2.3W typical
• 4.5W max

Mechanical:

• Dimension: 3U – 100 x 160 mm (3.94” x 6.30”)
• Pitch: Single Slot – 20.02 mm (0.79”)
• Weight: 140g

Operating Temperature:

• 0 to 60°C

Humidity:

• 0 to 90% non-condensing

Operating Systems Supported:

• VxWorks®, Windows 98®, Windows NT®, Windows 2000®, Linux®

Options:

• Device driver for VxWorks®
