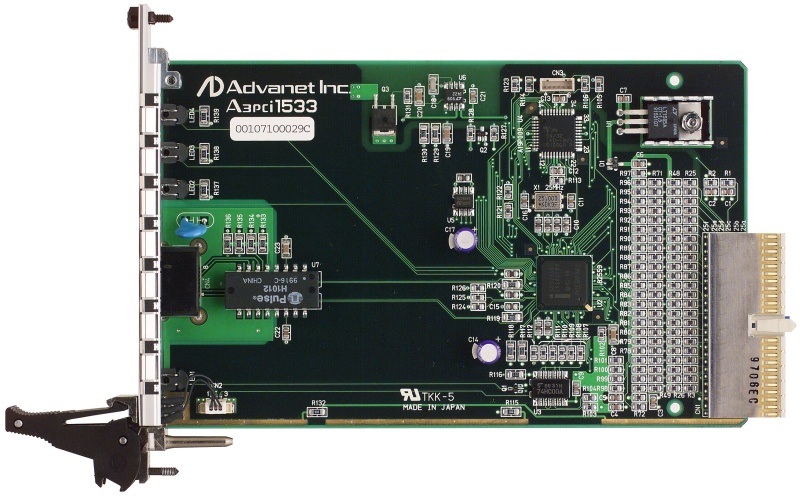

The A3pci1533 is a 3U size CompactPCI FastEthernet board.
It is equipped with a 100/10Base-T RJ45 connector and it features an Intel® GD82559™ controller.
It provides full HotSwap capability and device driver support for Windows NT.
Device driver support for VxWorks® is available as a paid option.
Architecture:
Ethernet:
- Controller: Intel® GD82559™
- Transmission speed: 10Mbps, 100Mbps (full duplex operation possible for both of them)
- Connector: one RJ-45
- Indicators: link, activity, speed and HotSwap status LED indicators
Bus:
- CompactPCI bus
- Data width: 32 bit
- Bus speed: 33MHz
- Space required: 64Bytes in PCI I/O space and 1MB in memory space
- Interrupt line: INTA
RoHS:
Power Supply:
Power Consumption:
- 0.25W typical 0.5W max (+5V DC)
- 0.46W typical 0.83W max (+3.3V DC)
Mechanical:
- Dimension: 3U – 100 x 160 mm (3.94” x 6.30”)
- Pitch: Single Slot – 20.02 mm (0.79”)
Operating Temperature:
Humidity:
Operating Systems Supported:
- VxWorks®, pSOS®, Windows 98®, Windows NT®, Windows 2000®
