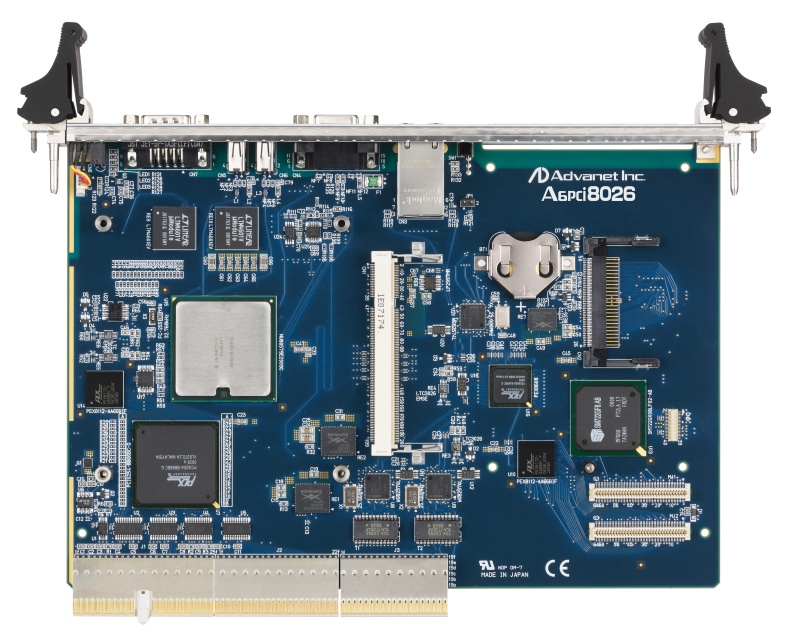

The A6pci8026 is a CompactPCI bus-compatible 6U size CPU board equipped with Intel® EP80579™.
System on Chip
Intel® EP80579™ is a SoC (System on Chip) that integrates various functions including the memory controller and I/O controller into the CPU core.
The CPU core is a PentiumM™ processor running at 1.2 GHz.
The A6pci8026 incorporates 2GB of PC2-4200-compatible SO-RDIMM main memory that supports the ECC capable of automatic correction of bit error (one out of 72 bits).
Coupled with the Compact PCI that is compatible with the system slot and peripheral slot, this CPU board has two Gigabit Ethernet ports, and one serial ATA port on the RearI/O.
The A6pci8026 is also equipped with one CompactFLASH slot and one PMC slot on board. One Serial port, one Gigabit Ethernet port, one VGA port, and two USB2.0 ports are provided on the front panel.
