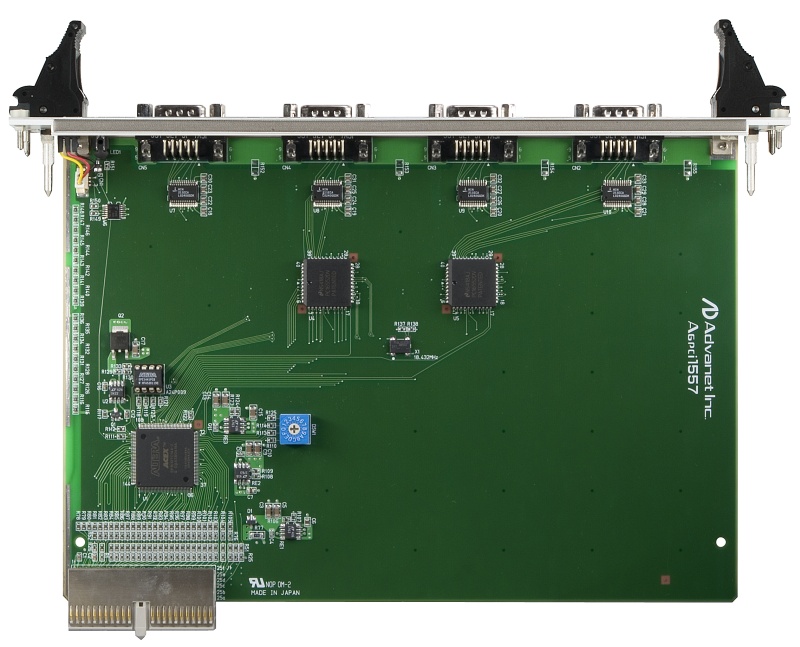

The A6pci1557 is a CompactPCI board that provides four RS-232C serial channels.
It is equipped with two National Semicondutor® PC16552™ serial controllers. Each serial interface connector is a Dsub9 pin connector.
Architecture:
Serial Ports:
- Number of channels: 4x RS-232
- Signal level: TIA/EIA-232E standard-compliant
- 2x National Semicondutor® PC16552™ controller
- Baud rate: 115.2kbps max:
-RL: from 3 to 7kOhm
-CL: from 50 to 1000pF
- 4x D-Sub 9pin/male connectors
- Control line: DCD, DSR, CTS, DTR, RTS, RI
Hot Swap:
RoHS:
Power Supply:
Mechanical:
- Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
- Pitch: Single slot – 20.02 mm (0.79”)
Operating Systems Supported:
- Windows 2000®, Windows XP®, VxWorks®
