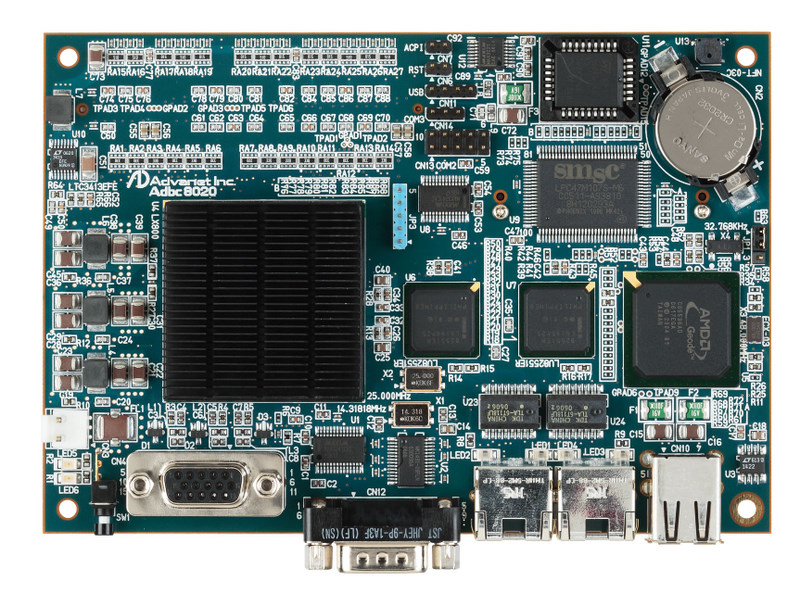

The Adbc8020 is a Compact CPU board equipped with a AMD® Geode LX800™ processor. Memory can be expanded to 1GB using SO-DIMM, and it has CompactFlash sockets which enable it to boot various OS. As Ethernet 2ch is installed, the Adbc8020 can be used as a compact network server.
Architecture:
CPU:
- AMD® Geode LX800™ processor 500MHz
- L1 cache: 64KB/64KB, L2 cache: 128KB
- Equipped with passive heatsink, fanless
- Built-in functions: memory controller, graphic controller, PCI bridge, supports up to 3 master devices
- Memory controller: 200MHz, 64bit DDR I/F (DDR400), without ECC
- Graphic controller: Maximum resolution 1600x1200 pixel @32bit color, 100 Hz
- PCI Bridge: PCI Rev2.2 Specification compliance, 32bit, 33/66MHz, 3.3V signaling level
- Supports up to 3 master devices: one of which is used as a companion device
Memory:
- Boot ROM: FLASH Memory through a 32-pin PLCC socket
- Main Memory: 200-pin DDR SO-DIMM socket, supports PC3200 (no ECC), up to 1GB
- Compact Flash Type1 connector
Companion Device:
- AMD® Geode CS5536™ Companion device
- Built-in functions: PCI bridge, IDE controller, USB controller, support connection of up 2 devices
- PCI Bridge: PCI Rev2.2 specification compliance, 32bit, 33/66MHz, 3.3V signaling level
- IDE controller: ATA-6 compliance
- USB controller: USB 2.0 compliance
- Supports connection of up to 2 devices (connects CF to Primary-Master)
- UART: 1ch
- SMB controller
- LPC port: LPC Specification v1.0
- RTC: Battery backup
Ethernet:
- 2x 10/100Base-TX
- 2-port RJ45 connector
Serial Ports:
- 1x COM port TIA/EIA-232E standard
- Asynchronous, 1-port Dsub9
USB:
- 2x USB 2.0 Type A connector
Video:
- VGA output: 15-pin Dsub connector
Internal Interface:
- COM port TIA/EIA-232E Standard, asynchronous, equipped with 2-port header connector
- USB I/F: x1 USB 2.0 port, equipped with on-board header connector
RoHS:
Power Supply:
Mechanical:
- Dimension: 100 x 145mm (3.94” x 5.71”) excluding prongs of the connector
Operating Systems Supported:
- Windows NT®, Windows 2000®, Windows XP®, Linux®
