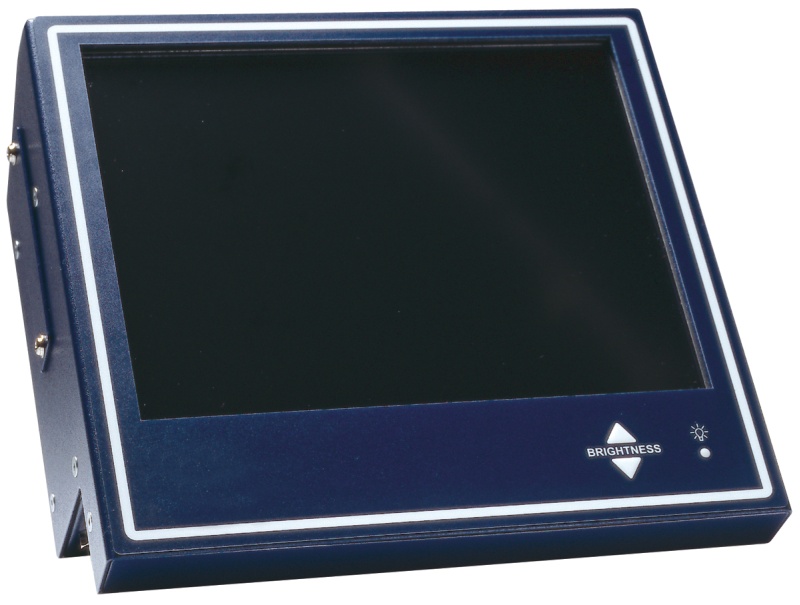

ICE-VIEW-100

The ICE-VIEW-100 is optimised for the PXA255 XScale based VIPER single board computer. The ICE-VIEW-100 is a rugged ergonomic design for installation onto OEM machines or into vehicle systems. Using a standard VESA compatible mounting system, the ICE-VIEW-100 is fitted with an internal baseboard which supports a 24V PSU (9 - 36V DC), an analogue touchscreen interface and industry standard connectors.

Mounting:

• Industrial Enclosure fitted with Eurotech VIPER processor board

Display:

• NEC® 8.4" VGA sunlight-readible LCD-TFT
• Front panel backlight brighness control

Front Panel Protection:

• IP65

CPU:

• Intel® PXA255™ 412 MHz

Memory:

• SDRAM: up to 64 MB on board
• side panel access for VIPER CompactFlash port (for memory, WiFi or Bluetooth card)

Bus:

• 1x PC/104

Standards:

• FCC/CE EMC EN61000-6 -3 -2

USB:

• 2x USB 1.1

Other Connectors:

• 1x D-sub 25 connector positions for I/O
• 2x D-sub 9 plugs and 1x D-sub 9 socket connectors for standard serial ports (socket for remote keypad)
• Standard VESA mounting plate locations

Power Supply:

• 10-36VDC (10-25VAC)

Mechanical:

• Dimension: 185 x 208 x 73 mm (7.28” x 8.19” x 2.87”)
• Weight: 2.18kg including VIPER, LCD, touchscreen and interface

Operating Temperature:

• 0 to 60°C

Options:

• Touchscreen
• Full mini-keyboard tray
