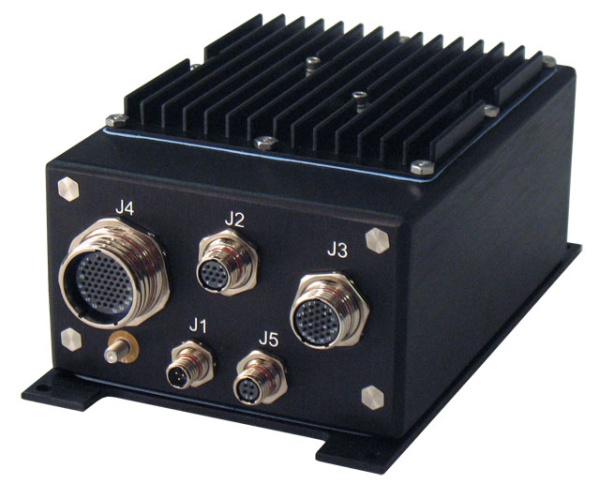

The DuraCOR® 820-A is a rugged tactical mission processor based on the ultra low-power 1.6Ghz Intel® Atom™ CPU, optimally designed for Size, Weight, and Power (SWaP)-constrained military / aerospace vehicle and aircraft installations.
Interfaces
Mechanically compact (~ 3.0” tall, ~3lbs weight), this small form-factor computer subsystem integrates Gigabit Ethernet and MIL-STD-1553 (optional) connectivity, along with digital I/O and standard PC interfaces, including analog video, 3x USB, 2x RS-232 serial, keyboard, and mouse.
For application flexibility, the unit comes with a 4GB industrial solid state disk (SSD) pre-loaded with a Linux® or Windows Embedded® operating system, as well as a 16 GB CompactFlash disk for file storage.
Designed for avionics and ground vehicle platforms to enhance situational awareness and computational capabilities, the DuraCOR 820-A delivers processing and multimedia performance comparable (or better) to Pentium M-based DuraCOR solutions, but with less power consumption, double the RAM memory capacity, and dual Flash SSDs. The system is also equipped with a 28V high efficiency power supply compliant with MIL-STD-1275 and MIL-STD-704 voltages, spikes, and surges.
Ruggedization
The DuraCOR 820-A is designed for use under extended temperature (-40 to +71°C) and other demanding MIL-STD-810F environmental conditions (thermal, shock, vibration, altitude, humidity). Its conductively cooled, sealed aluminium chassis incorporates protection from water and dust ingress, as well as MIL-STD-461E emissions and susceptibility. Power and system I/O signals are brought out through lightweight, high-density MIL-38999-like connectors, making the product an ideal solution for a variety of unmanned and manned command and control (C2) applications.
The unit is based on a modular PC/104-Plus architecture, making it possible to special order with customer-specific I/O configurations, determined by the available connector pinouts.
CPU:
- Intel® Atom™ Z530 (Menlow), 512K L2 Cache, 32-Bit Instruction Set, 45 Nanometer
- 1.6GHz Clockspeed w/Support for Intel Hyper-threading, Speed-Step, Virtualization
Memory:
Solid State Disk:
- NAND Flash: 4 GB non-volatile integrated onto Single Board Computer
- CompactFlash: 16 GB non-volatile w/ Ultra DMA Support (Capacity upgrades available to 32GB)
Operating Systems Supported:
- Pre-installed Linux® or Windows Embedded® image (120 day eval license)
- Hardware compatible with all x86 embedded and real-time operating systems
(Windows XPE®, Windows CE®, Linux®, QNX®, VxWorks®)
Board Architecture:
- Compliant with PC/104-Plus Standard (PCI/ISA Bus)
Ethernet:
- 1x Gigabit Ethernet Network Interface (10/100/1000 Mbps)
MIL-STD-1553 Port:
- 1x MIL-STD-1553 Port, DDC BC/RT/MT Architecture (select models)
Serial:
- 2x EIA RS232 serial ports, 115Kbps Max
USB:
Video:
- VGA analog video output (up to 1600x1200 pixels)
Other Interfaces:
- PS2 Keyboard and Mouse ports
- Eight General-Purpose Digital I/O (GPDIO) lines, 4 Parallel Port Control Lines, 4
Parallel Port Data Lines, Capable of Sinking/Sourcing 12mA
Power Supply:
- 28V Nominal Power Input Voltage (18-33VDC Range Continuous)
- Reverse, Over Voltage, 250V Spike, 100V Surge-Protected
- MIL-STD-704E and MIL-STD-1275D Compliance
- Ground: Grounding Lug for Connection to System Chassis Ground
- Battery for Real-Time Clock Maintains Time/Day for ~30 Days
Power Consumption:
- 19 W Power Dissipation (max) with 1553
- 16 W max (without 1553)
Operating Temperature:
- Designed to meet MIL-STD-810F: (Qualification Testing Pending)
- -40 to +71°C
- Cooling: no moving parts, passive conductive cooling
Other Features:
- Operating Shock: 20g, 15ms, 3 pos/neg per axis, total 18 sawtooth pulses
- Crash Safety Shock: 40g, 11ms, 2 pos/neg per axis, total 12 sawtooth pulses
- Random Vibration: 0.022-G²/10-Hz to 0.0026-G²/2000-Hz
- Water Immersion: 1 Meter Submersion, 30 Minutes (Similar to IP67)
- Dust Ingress: Designed for Compliance w/Method 510.4, No Dust Ingress
- Altitude: Up to 60,000 feet (18,288 meters), Thermal De-rating May Apply
Humidity:
- 0 to 95% non-condensing (Conformal Coated)
Mechanical:
- Dimension: 77.22 x 109.22 x 179.83 mm (3.04” x 4.30” x 7.08”) including connectors and baseplate
- Chassis: aluminium alloy, corrosion resistant
- Connectors: glenair series 801 mighty mouse (MIL-38999-like)
- Installation: flange mount baseplate
- Finish: anodized per MIL-A-8625, Type III, Class 2
EMI/EMC Isolation:
- Designed to meet MIL-STD-461E
- CE102, Power Leads, 10 KHz to 10MHz, basic curve
- CS101, Power Leads, 30 Hz to 150 KHz, curve 2 (28V and below)
- RE102, Electric Field, 10 KHz to 18 GHz, figure 3
- RS103, Electric Field, 30 MHz to 18 GHz
MTBF:
- 40,000 hours – Airborne Inhabited Fighter / Ground Mobile
-120,000 hours – Ground Benign
Warranty:
- 1 Year RTF Warranty (Extended Service Contracts Available)
Expansion/Special Order Options:
- One PC104(+) Expansion Slot for I/O / Comm Module (if MIL-STD-1553 Card Not
Populated), Limited to Spare Pin-Count on Connectors without Mechanical Changes
- Special Order / Custom Configurations Possible (e.g. up to 4 MIL-STD-1553
channels, Additional RS-232/422/485 Asynchronous Serial Ports, GPS Receiver). Contact us for more information
