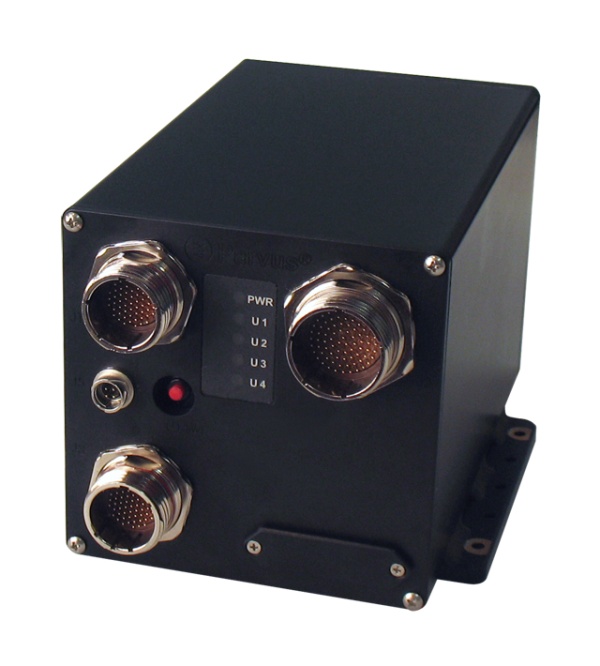

DuraCOR 810-Duo

Dual-Core MIL rugged computing platform

The DuraCOR® 810-Duo is a rugged multi-core mission processor subsystem designed for high reliability applications requiring MIL-STD-810F environmental compliance with extreme temperatures, shock/vibration, and ingress. Based on a modular, open architecture COTS design with an Intel® Core2 Duo™ CPU, solid state disk, MIL-704/1275 power supply and conduction cooled chassis, the DuraCOR 810-Duo is an ideal computing solution for harsh mobile military and
homeland security C4ISR deployments.

HIGHLIGHTS

  • 1.5GHz Intel® Core2 Duo™ Processor
  • Solid State Media, MIL-STD Power Supply
  • SATA, IDE, Removeable Media Support
  • Dual Ethernet, Video, Serial, and 6x USB
  • Internal PC104 Card Cage with 6 Spare Slots
  • Designed to MIL-STD-810F, 461E, 704E & 1275D
  • Conduction Cooled Chassis w/ MIL Connectors
  • -40 to +71ºC Operating Temp

APPLICATIONS

  • Civil / Military Command and Control (C2) Server
  • (Un)manned Vehicle Mission Processor
  • 24/28V Mobile Rugged Computer for Vehicle / Aircraft Installations
  • Defense and Homeland Security
FeaturesSpecifications
The DuraCOR® 810-Duo is a rugged multi-core mission processor subsystem designed for high reliability applications requiring MIL-STD-810F environmental compliance with extreme temperatures, shock/vibration, and ingress. Based on a modular, open architecture COTS design with an Intel® Core2 Duo™ CPU, solid state disk, MIL-704/1275 power supply and conduction cooled chassis, the DuraCOR 810-Duo is an ideal computing solution for harsh mobile military and
homeland security C4ISR deployments.
Ruggedization
To ensure high reliability, signal integrity, and extended environment operation, this high-performance tactical computer comes equipped with sealed MIL-38999 connectors, integrated EMI/EMC filtering, MIL-qualified power supply, watertight conduction-cooled enclosure, aluminium railed card cage, and near cable-less design. The unit is designed to meet and will be qualified to MIL-STD-810F and
MIL-STD-461E for insertion into Size, Weight, and Power (SWaP)-constrained aircraft, ground vehicle and maritime platform modernization programs.
Interfaces
Locking MIL circular connectors bring out Gigabit and Fast Ethernet connections, 6 USB ports, 2 RS-232 ports, Dual Video Display (LCD/VGA), Keyboard, Mouse, and Audio signals, as well as an expansion connector for up to 79 signals from optional add-on cards. Up to six expansion slots are available to support Commercial off the Shelf (COTS) PCI-104 or PC/104-Plus modules.
To enable rapid deployment, an industrial-grade CompactFlash (CF) Solid State Disk (SSD) comes ready to boot with Linux or Windows Embedded. Up to Two CF and one SATA interfaces are supported internally without occupying card slots, as well as an external eSATA interface for rugged Network Attached Storage (NAS). An optional removable media slot eases secure data transfer,
declassification, servicing, system software updates or storage capacity upgrades.
Professional services are available from Parvus to deliver semi-custom versions of this product, including mechanical changes and integrated application-specific PC104+ I/O cards (i.e. Ethernet Switch, MIL-STD-1553 / ARINC 429 interface, Video Encoders/Frame Grabbers, GPS Receivers, discrete I/O, etc.).
