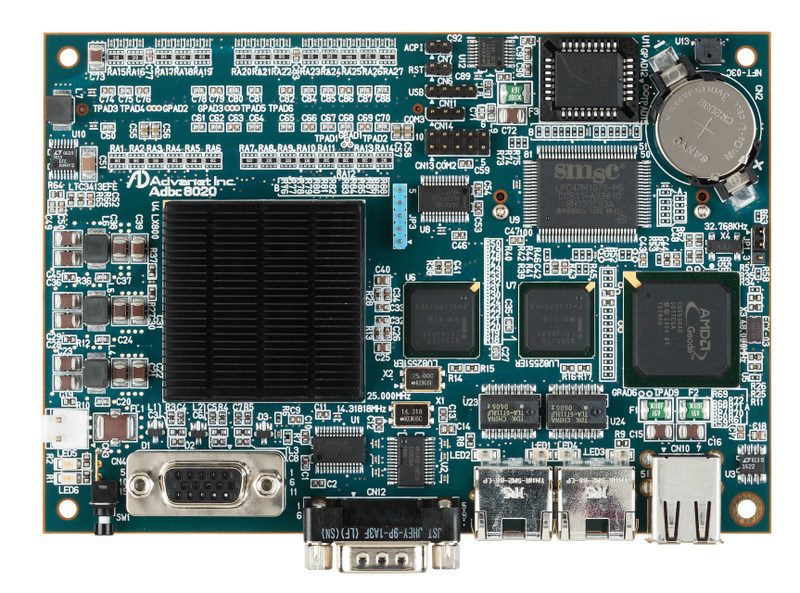

Adbc8020

The Adbc8020 is a Compact CPU board equipped with a AMD® Geode LX800™ processor. Memory can be expanded to 1GB using SO-DIMM, and it has CompactFlash sockets which enable it to boot various OS. As Ethernet 2ch is installed, the Adbc8020 can be used as a compact network server.

Architecture:

• Eurotech form factor

CPU:

• AMD® Geode LX800™ processor 500MHz
• L1 cache: 64KB/64KB, L2 cache: 128KB
• Equipped with passive heatsink, fanless
• Built-in functions: memory controller, graphic controller, PCI bridge, supports up to 3 master devices
• Memory controller: 200MHz, 64bit DDR I/F (DDR400), without ECC
• Graphic controller: Maximum resolution 1600x1200 pixel @32bit color, 100 Hz
• PCI Bridge: PCI Rev2.2 Specification compliance, 32bit, 33/66MHz, 3.3V signaling level
• Supports up to 3 master devices: one of which is used as a companion device

Memory:

• Boot ROM: FLASH Memory through a 32-pin PLCC socket
• Main Memory: 200-pin DDR SO-DIMM socket, supports PC3200 (no ECC), up to 1GB
• Compact Flash Type1 connector

Companion Device:

• AMD® Geode CS5536™ Companion device
• Built-in functions: PCI bridge, IDE controller, USB controller, support connection of up 2 devices
• PCI Bridge: PCI Rev2.2 specification compliance, 32bit, 33/66MHz, 3.3V signaling level
• IDE controller: ATA-6 compliance
• USB controller: USB 2.0 compliance
• Supports connection of up to 2 devices (connects CF to Primary-Master)
• UART: 1ch
• SMB controller
• LPC port: LPC Specification v1.0
• RTC: Battery backup

Ethernet:

• 2x 10/100Base-TX
• 2-port RJ45 connector

Serial Ports:

• 1x COM port TIA/EIA-232E standard
• Asynchronous, 1-port Dsub9

USB:

• 2x USB 2.0 Type A connector

Video:

• VGA output: 15-pin Dsub connector

Internal Interface:

• COM port TIA/EIA-232E Standard, asynchronous, equipped with 2-port header connector
• USB I/F: x1 USB 2.0 port, equipped with on-board header connector

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Mechanical:

• Dimension: 100 x 145mm (3.94” x 5.71”) excluding prongs of the connector

Operating Systems Supported:

• Windows NT®, Windows 2000®, Windows XP®, Linux®
