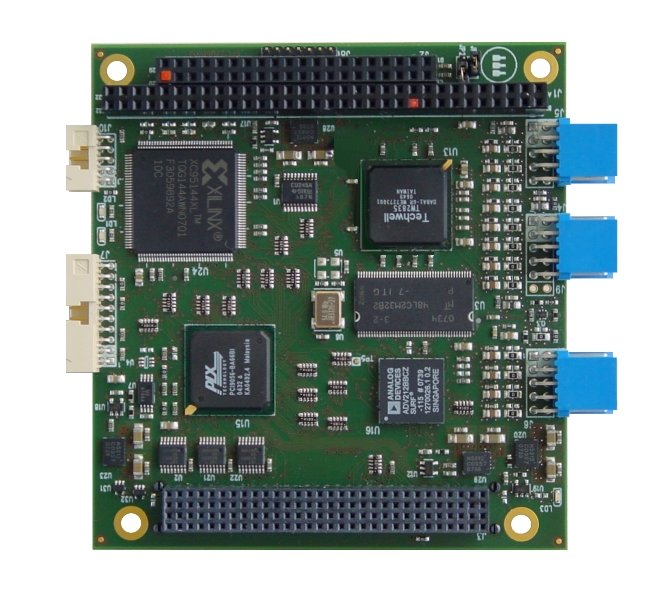

CTR-1474

PC/104-Plus JPEG-2000 Compressor with 4 independent videocomposite input

The CTR-1474 is a Video Encoder module that provides a JPEG2000 Compression/Decompression. It features four video input channels and video decoders. It is suitable for most applications that supports real-time video encoding.

HIGHLIGHTS

  • Video input channels PAL-NTSC
  • JPEG2000 Compression/Decompression
  • Four filtered video decoders
  • Video controller
  • Motion detection for each video channel

APPLICATIONS

  • Networked video and image distribution systems
  • Wireless video and image distribution
  • Image archival/retrieval
  • Digital CCTV and surveillance systems
  • Digital Cinema Systems
  • Professional Video editing and recording
  • Digital Still Cameras
  • Digital Camcorders
The CTR-1474 is a high performance four channels Video Encoder that benefits by the features and the enhanced quality provided by the JPEG2000 (J2K) - ISO/IEC15444-1 image compression standard.The Module implements the computationally intensive operations of the JPEG2000 image compression standard as well as provides a fully ISO/IEC15444-1 compliant code stream generation for most applications that supports real-time video encoding.
Performance
The CTR-1474 provides high quality solutions for use in professional video and Embedded PC systems based on PC/104-Plus modules. The CTR-1474 can process images at a rate of 40M samples/sec in reversible mode, and at higher rates when used in irreversible mode. It contains a dedicated wavelet transform engine, an on board memory system and an embedded RISC processor, which can provide a complete JPEG2000 compression/decompression solution.
The CTR-1474 has been designed to resist vibrations and temperature extremes.
