PC/104-Plus Cardbus/PCMCIA controller module

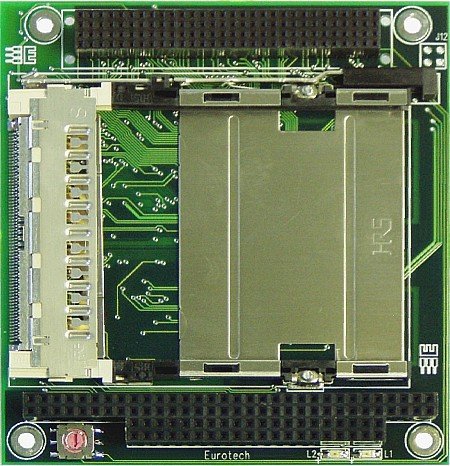

The CTR-1462 is a PC/104-Plus board that has been developed to incorporate in a single slot type I, II and III cards. It supports both 16-bit (PCMCIA) and 32-bit (CARDBUS) modules. Both 3.3V and 5.0V cards can be live inserted into the locking slot. The CTR-1462 features also an onboard +12V voltage source.


  • RICOH® R5C486™ CARDBUS PCI host controller
  • PC card (PCMCIA) or CARDBUS card compatible
  • Single slot, type I, II and III card support
  • Automatic Plug-and-Play detection and configuration
  • Onboard programmable +12V voltage source
  • Supports ACPI power management


  • Industrial
  • Medical
  • Transportation
  • Defense
