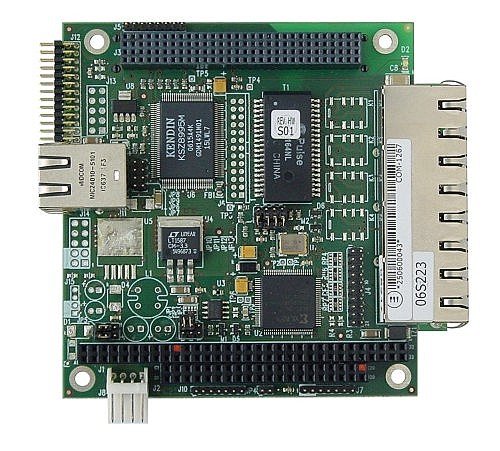

COM-1267

PC/104 Switch with five 10/100MB Ethernet ports

The COM-1267 is a versatile five-port Ethernet switch. A cross-over connection can be realized between ports 2 and 3. The board features QoS for DiffServ priority.

HIGHLIGHTS

  • 5x Fast Ethernet ports
  • PC/104-Plus compliant
  • 64KB SRAM frame buffer
  • QoS for DiffServ priority

APPLICATIONS

  • Remote data acquisition
  • Machine monitoring
  • Process control
  • Environmental control
  • Communications gateways for factory automation, aerospace, telecom and transportation.
The COM-1267 is a versatile 10/100Mbps five-port Ethernet switch that can function in 10BaseT or 100BaseTX modes and allow connections made through onboard RJ-45 connectors. The COM-1267 can be used as a standalone module or integrated within a PC/104 or PC/104-Plus system together with a Eurotech CPU module.
Cross-over connection
The COM-1267 can optionally feature a cross-over connection between Ethernet ports 2 and 3 that can be activated via software, automatically activated when the board is powered off, or activated when a Watchdog signal is received from the host Eurotech CPU module.
