Advme7509 is a single-slot 6U VME board utilizing a PowerPC 750FX™ processor. The board can be used as a system controller to meet high performance system requirements. The front panel includes 2ch of 10/100BASE-TX Ethernet ports and 4ch RS232 serial ports.

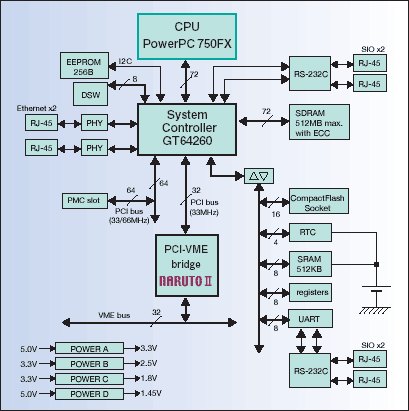

VME controller
The external VME bus is accessible via the on-board NARUTO II™ PCI-VME bridge.
Main Memory
There is a variety of memories that are available including: SDRAM (up to 512MB), CompactFlash, FlashROM, SRAM, and EEPROM.

Architecture:

• VME

CPU:

• IBM® PowerPC 750FX™ (600MHz)
• L1 cache:32KB/32KB, L2 cache:512KB w/ parity

Memory:

• 256-512MB SDRAM (133MHz supports EC/ECC functions)
• 512KB Boot ROM Flash Memory (accommodating Advanet’s T4th boot loader)
• 512KB SRAM for backup
• 256 Bytes Serial EEPROM
• CompactFlash socket supporting 3.3V modules
• 8-ch DMA controller

System Controller:

• Marvell Discovery I (GT-64260)

PCI-VME Bridge:

• NARUTO II™

PMC Slot:

• Standard: IEEE 1386.1
• One slot
• Power supply +5V, +3.3V, +12V, -12V DC
• 32/64 bit

Watchdog Timer:

• Provided by GT-64260™

Real Time Clock:

• EPSON® RTC62423™
• Battery backup

Other Interfaces:

• 4x RS232C (using RJ-45 connector)
• 2x 10/100Base-T Ethernet (RJ-45)

Bus:

• VME bus
• Width complies with A32/A24/A16 D32/D16/D08 (EO) Rev.C.3
• Functions: master/slave, system controller, interrupter, interrupt handler, system reset, input/output

RoHS:

• Lead-free

Power Supply:

• Single +5V DC

Power Consumption:

• 32.5W max (excluding PMC)

Mechanical:

• Dimensions: 6U - 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot - 20.02 mm (0.79”)
• Weight: 330g

Operating Temperature:

• 0 to 55°C

Humidity:

• 0 to 90% non-condensing
