PC/104 16-channels Opto-Isolated Digital Input PC104 Module

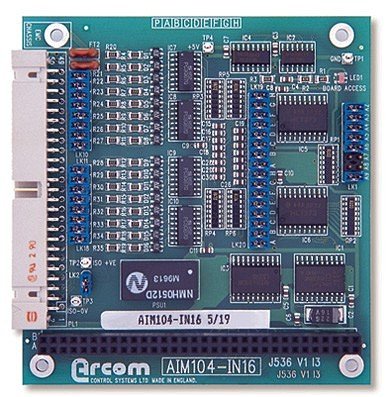

The AIM104-IN16 is an 8-bit PC/104 module providing 16 opto-isolated inputs. The isolated supply may be sourced from either the on-board DC/DC converter or an external supply, so that there are two variants: the AIM104-IN16 and the AIM104-IN16-DC/DC. The board includes jumper options for each channel.
- 16 opto-isolated digital inputs
- Input switching voltage: 10 to 30V
- Reverse protection diodes on all inputs
- 10ms input debounce filters (link-selectable) on each channel
- Optional +24V isolated DC/DC converter
- Module access LED
