AIM104-CAN

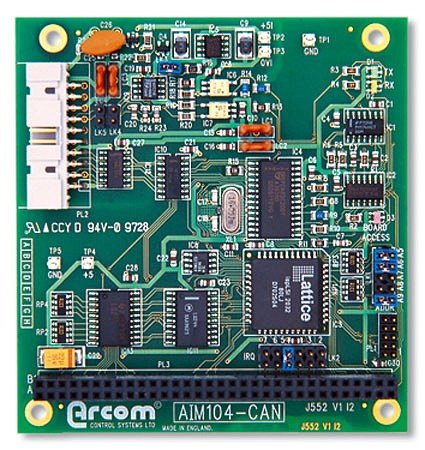

Single Channel Opto-Isolated CAN interface module supporting the Philips SJA1000 Controller (CAN 2.0B compliant) PC104 board

The AIM104-CAN is an 8-bit PC/104 module providing a single channel, optically isolated, Controller Area Network (CAN) interface. Parameters are stored in a 128 byte serial EEPROM. The Philips® 82C200™ controller supports a 1Mbit/s Baud rate.

HIGHLIGHTS

  • Single-channel opto-isolated CAN interface
  • Philips® 82C200™ controller
  • Supports CAN ISO11898 network connection (CAN 1.1 and 2.0a)
  • Up to 1Mbit per sec baud rate
  • 128 byte serial EEPROM for parameter storage

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
Skip Navigation Links
Features
Specifications
Accessories

The AIM104-CAN is an 8-bit PC/104 module providing a single channel, optically isolated, Controller Area Network (CAN) interface. In addition, the board is fitted with an EEPROM for configuration information and an output port for driving three bi-colour LED’s.
Controller
It has a Philips® 82C200™ controller, and supports CAN ISO 11898 network connection (CAN 1.1 and 2.0a). It supports a 1Mbit/s Baud rate. CAN termination is onboard link-selectable.
