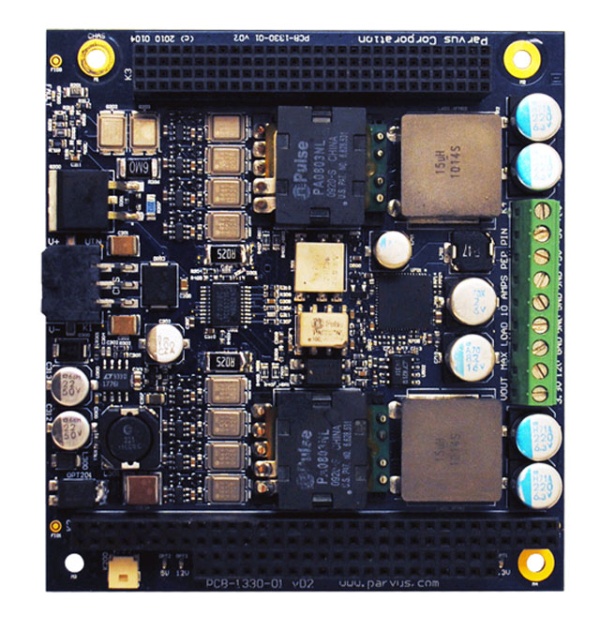

Designed for extended temperature operation (-40 to +85°C per MIL-STD-810G) and demanding power conditions dealt onboard military ground vehicles (MIL-STD-1275D) and aircraft (MIL-STD-704F) installations, this highly efficient (90%+), filtered DC/DC converter supplies DC voltage outputs (+3.3V, +5V, +12V) over the PC/104 (ISA) bus, PC/104-Plus (PCI) bus, or onboard screw clamp terminal. Featuring a rugged mechanical design, this small form factor (3.550” x 3.775”) card is designed to be used as the bottom card in a PC/104 system stack, operate without heatsinking or any active cooling, and provide resistance to high levels of shock and vibration. Featuring an onboard MIL-STD-461 EMI filter and transients protections for the 250V spike and 100V surge requirements of MIL-STD-1275, the card can replace the typical in-line power conditioning/EMI filtering devices integrated into military embedded systems. The product is offered in two output configurations: 40-watt or 80-watt to accommodate smaller to larger PC104(+) system power requirements.

Form Factor:
PC/104-Plus Power Supply
Compliance:
Designed to Meet MIL-STD-810G, MIL-STD-1275D, MIL-STD-704F, and MIL-STD-461E (Formal Qualification Testing Pending)
Voltage Input:
Nominal 28.0 V DC (+18 VDC to +33VDC with support for 250V spike and 100V surge per MIL-STD-1275)
Voltage Output:
+3.3V, +5V, +12V DC
Isolation:
1500V Galvanic Isolation DC
Power Output:
Up to 80 Watts at +85C: +5V@ 16A; +12V @ 2.0A, +3.3V @ 8.0A
Power Input Protection:
Reverse Polarity, Voltage Transient, Surge, Spike, Over Current
Power Output Protection:
Filtered Output, Current Fold-Back
Power Connectors:
PC/104 Bus (ISA), PC/104-Plus Bus (PCI), Screw Clamp Terminal
Remote Shutdown:
Remote Shutdown Support
Status Indication:
Status LED Indicator Signal for Power Fault/Power Good
High Efficiency:
90+% Efficient at Full Load

Power Conversion:
• Power Conversion Greater than 90% Efficient at Full Output
Input Protection:
• Designed to Meet Input, Surges, Spikes, Transient Requirements of MIL-STD-1275D and MIL-STD-704D
• +/- 250 Volt Spike Protection
• 100 Volt Reverse Polarity Protection
• 100 Volt/50ms per MIL-STD-1275 Operation
• 1,500 Watt Bi-Directional Transient Voltage Suppressor (TVS)
• Over Current Shut Down Over 18A Nominal
Output Protection:
• Current Fold-Back Protection
Switching Frequency:
• 330kHz
Power Output:
80 Watt Version:
• +5V @ 16A; +12V @ 2.0A, +3.3V @ 8.0A
40 Watt Version:
• +5V @ 8A; +12V @ 1.0A, +3.3V @ 4.0A
Bus:
• 16-bit PC/104 (ISA): +5V and +12V DC Outputs
• 32-Bit PC/104-Plus (PCI): +3.3V, +5V, and +12V DC Outputs
EMI/EMC:
• Designed for Compliance with MIL-STD-461E (CE102, CS101) – Qualification Testing Pending
Environmental:
Designed to Meet MIL-STD-810G (Qualification Testing Pending):
• Operating Temperature: -40° to +85C /-40°F to +185°F (MIL-810G, Methods 501,502)
• Storage Temperature: -40 to +85C / -40°F to +185°F (MIL-810G, Methods 501,502)
• Operating Shock: 40g, 11ms, 3 pos/neg per axis, 18 terminal peak sawtooth pulses (MIL-STD-810G, Method 516)
• Random Vibration: 5Hz to 2000Hz, 7.98 GRMS Power Spectral Density (PSD) Integral, 3 Axes, 1 Hour/Axis (MIL-STD-810G, Method 514, per Hybrid Jet, Helo, Ground Mobile & Tracked Vehicle Profile)
• Humidity: Up to 95% RH @ 40C, Non-Condensing (by analysis)
Reliablity:
• No Moving Parts. No Active Cooling Required.
• MTBF TBD
• Assembled to IPC-A-610 Class III Workmanship
• All Industrial Temperature Grade Components \
Warranty:
• 1 Year RTF Warranty (Extended Service Contracts Available)
Options:
• Conformal Coating
• Custom Connectors
• Non-Isolated Power Control
• Integrated into Mil-Qualified DuraCOR 810-Duo Mission Computer, DuraNET 1268 Gigabit Ethernet Switch, etc.

Physical Characteristics

Dimensions:
• 3.550" x 3.775" (90x96 mm)
Form Factor:
• PC/104-Plus Compliant; Intended to be Used as Bottom Board of PC104(+) stack
Weight:
• ~0.40 lbs (0.18 kgs) for fully populated 80W version
Connectors:
• Non Stack-Through PC104 (ISA) and PC/104+ (PCI) Buses, Screw-Clamp Terminal Block
