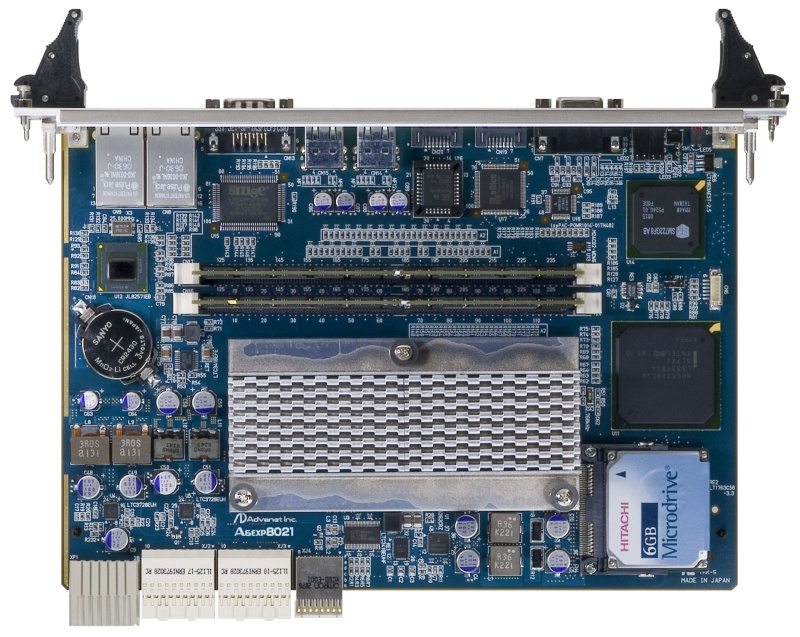

The A6EXP8021 is a Core Duo/ Core2 Duo based CompactPCI Express board that supports PICMG Packet Switching Backplane Specification EXP.0 R1.0.

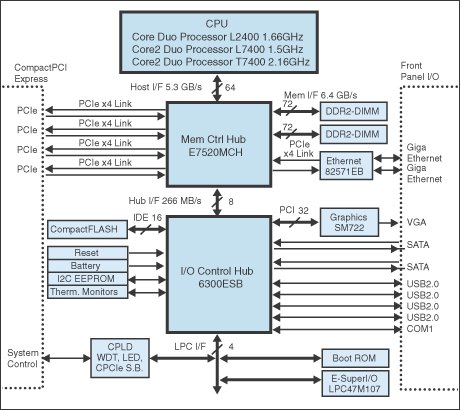

Chipset
The A6EXP8021 is equipped with the Intel® E7520™ server chip set for a memory control hub and Intel® 6300ESB™ for an I/O control hub. The Intel® E7520™ server chipset features the PCI Express routing function embedded in the ECC-capable memory controller. The DMA controller allows high-speed data transfer between main memory and PCI Express. The A6EXP8021 adopts dual channel memory that allows for PC2-3200 DIMM.
Interfaces
CompactPCI Express can serve as x4 lanes (4 links) or x8 lanes(2 links) that are compatible with various backplanes as usage. The A6EXP8021 is also equipped with standard interfaces including Gigabit Ethernet, Serial ATA, and USB 2.0, assuring usability.
Architecture:
CPU:
- Intel®Core™Duo processor L2400(1.66GHz)
- Core2™Duo processor L7400(1.5GHz)/T7400(2.16GHz)(optional at shipment)
- L1 cache: 32KB/32KB, L2 cache 2MB/4MB
- Equipped with passive heatsink, fanless
Memory:
- 2 DDR2 DIMM sockets (Dual channel): Supports PC2-3200 Registered DIMM up to 4GB (Memory module not included)
- Boot ROM: Firmware Hub flash memory, 1MB
- Serial EEPROM: I2C-EEPROM 2k bit
- CompactFlash: CF+ and CompactFlash Specification Revision 2.1 (CompactFlash is not included)
Chipset:
- Memory control HUB: Intel® E7520™
- I/O control HUB: Intel® 6300ESB™
- E-Super I/O chip: SMSC® LPC47M107™ (ESIO)
Watchdog Timer:
- Time out can be programmed from 131ms to 18.6s
- Reset or NMI can be issued when timeout occurs
Front Panel I/O:
- Graphics: 1280x1024 @24 bit, high density D-sub15pin female connector
- Serial ATA: 2x 1.0a standard, 150 MB/s
- USB: 4x USB 2.0 standard, USB type-A connector
- Serial port: 1x D-sub 9-pin male connector
- Ethernet: 2x 10/100/1000Base-T, RJ-45 connector
CompactPCI Express:
- Bus standard: PICMG EXP.0 R1.0 Specification
- Board type: system board (Dedicated system slot)
- Link: four x4 or two x8 lanes
- eHM key: Female 5
- ESD discharge strip support
- Backplane SMBus support (ALERT signal)
- PWRBTN# signal support
- PS_ON# signal support
- WAKE# signal support
RoHS:
Power Supply:
Power Consumption:
- 48W max (+12V DC L2400/L7400)
- 72W max (+12V DC T7400)
- 0.5W (+5V DC)
Mechanical:
- Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
- Pitch: Double slot – 40.04 mm (0.79”)
- Weight: 635g (battery included, CF e DIMM not included)
Operating Temperature:
Humidity:
Thermal Monitor:
- Monitors the temperature as follows:
-CPU junction
-Board surface temperature around the E7520MCH
-Board surface temperature around the power circuit for the CPU
Operating Systems Supported:
- VxWorks®, Windows 2000®, Windows XP®, Windows NT®
Options:
- Core2™Duo processor L7400(1.5GHz)/T7400(2.16GHz)
- CompactFlash
- PC2-3200 Registered DIMM up to 4GB
