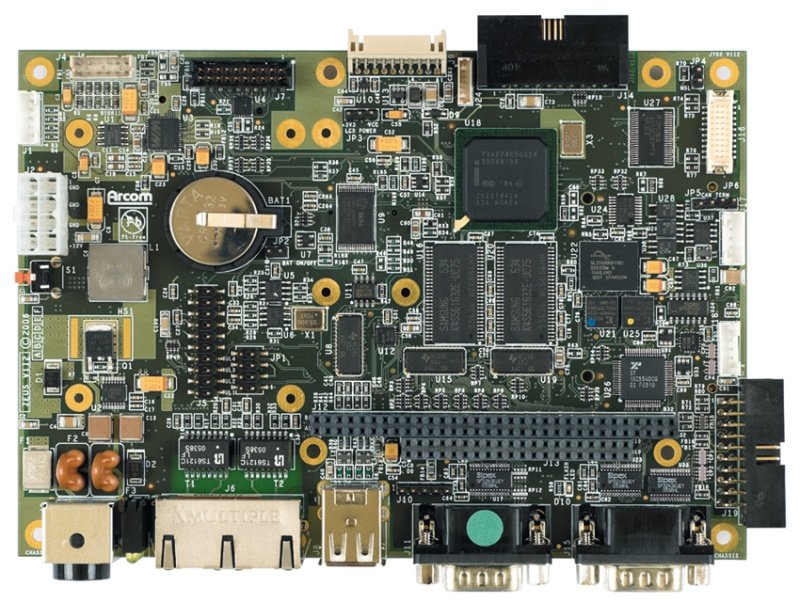

The ZEUS is an ultra low power EPIC size single board computer based on Marvell's 520MHz PXA270 XScale® RISC processor. The PXA270 is an implementation of the ARM compliant, Intel XScale microarchitecture combined with a comprehensive set of integrated peripherals including, a flat panel graphics controller, USB host/client controller, interrupt controller and multiple serial ports.
The ZEUS also includes a site for a variety of wireless modems and a GPS receiver.
The ZEUS provides a cost effective solution for a wide range of applications including asset monitoring and tracking, vehicle tracking, mobile terminals, network
communication controllers.
Processor:
· PXA270 XScale 520MHz
· PXA270 XScale 416MHz
Form Factor:
· EPIC
Expansion:
· 16-bit PC/104
· CompactFlash+ (I/O)
· Expansion sites for wireless modems and GPS receivers
Memory:
· Up to 256 MB on board SDRAM
· Up to 64MB of soldered AMD MirrorBit Flash
· 256kB of battery backed SRAM (using onboard battery)
Video:
· TFT/STN/LVDS flat panel support
Interfaces:
· 2x10/100baseTx Ethernet
· 2x RS232
· 1x RS232/RS422/RS485
· 1x RS422/485
· 2x USB 1.1
· 1 x cellular modem expansion port
· 1 x GPS receiver expansion port
· 1 x IEEE802.15.4/ZigBee expansion port
· RTC
Other Features:
· SD/SDIO/MMC card socket
· 4/5-wire analog touchscreen controller
· Microchip MCP2515 - CAN 2.0B controller & opto-isolated transceiver
· 16 buffered digital I/O, Intel Quick Capture Camera Interface
· AC97 audio controller
Operating Temperature:
· -20/+70°C
· -40/+85°C
