Advme8027

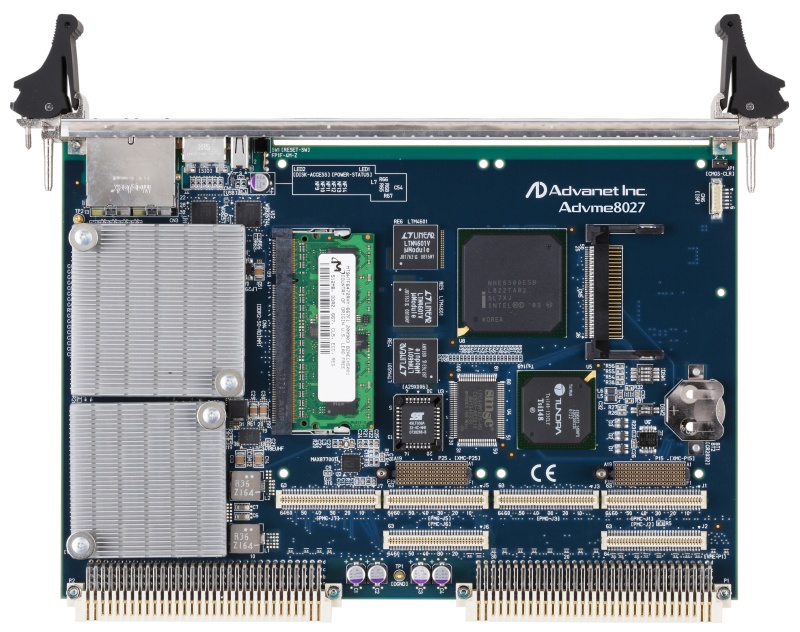

Intel® Core2Duo™ L7400 (1.5GHz) CPU Board

The Advme8027 is an Intel® Core2Duo™ processor L7400 integrated 6U VME bus single board computer with the single slot width. It is equipped with two Gigabit Ethernet channels, an USB port, a single CompactFlash socket and two PMC/XMC slots on board.

Not recommended for New Design

HIGHLIGHTS

* Intel® Core2Duo™ processor L7400 (1.5GHz)
  • DDR2-400 SO-RDIMM: 512MB to 2GB with ECC support
  • x2 Gb Ethernet
  • Compact Flash
  • x1 RS-232
  • x2 PMC slots
  • x2 PCIe x8 lanes to the XMC site

APPLICATIONS

* Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The Advme8027 is an Intel® Core2Duo™ processor L7400 integrated 6U VME bus single board computer with the single slot width. The L7400 CPU operates on a frequency of 1.5GHz and incorporates 32K bytes of data cache, 32K bytes of L1 instruction cache, and 4MB bytes of L2 cache for data/instruction.
Interfaces
The main memory is a DDR2-400-capable SO-RDIMM and is expandable up to 2GB. It ensures high reliability because of the SEC/DEC/ ×4SDDC function of server chip set E7520™.
It is equipped with two Gigabit Ethernet channels, an USB port, a single CompactFlash socket and two PMC/XMC slots on board.
Advme8027 has both VME64x and 2eSST capability of VME bus standard. And the board can be used either as a system controller or as a non-system controller, by automatic slot type recognition.
