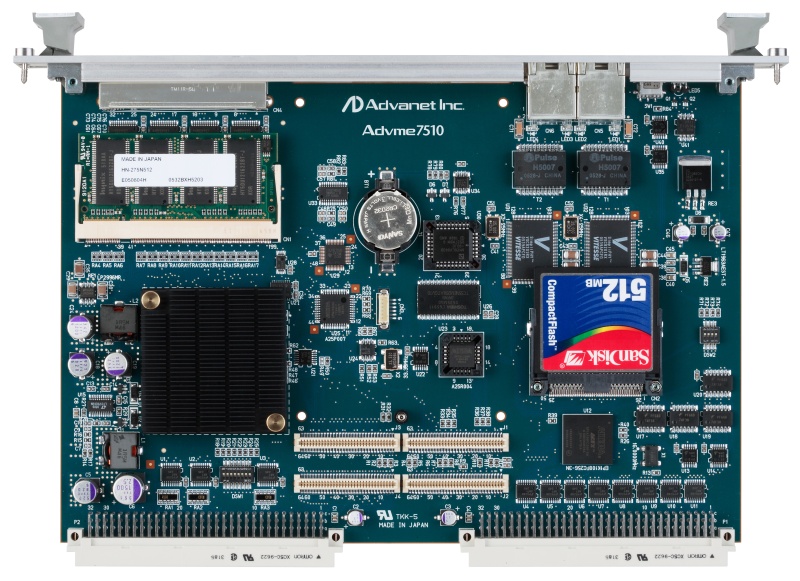

This board is a VMEbus CPU board with an onboard PowerPC440GX™ by AMCC®.
The input/output interfaces are two Gigabit Ethernet(2ch), serial ports(4ch).
The VME interface bus, which is an external bus, has an on-board Advanet® PCI-VME bridge, the NARUTO II™.
Memory
Also, a variety of memory can be used, including SO-DIMM socket (DDR-SDRAM), CompactFlash, FLASH memory, SRAM, and EEPROM.
There is also a PMC slot for expansion.

Architecture:

• VME compliant

CPU:

• AMCC® PowerPC440GX™
• L1 cache: 32KB/32KB, L2 cache: 256KB

Memory:

• 512MB PC2100 to 2700 compatible
• 512KB Boot ROM Flash Memory (accommodating Advanet T4th boot loader)
• 512KB SRAM for backup
• 256 Bytes Serial EEPROM
• CompactFlash socket supporting Type I or Type II

PCI-VME Bridge:

• NARUTO II™

PMC Slot:

• Standard: IEEE 1386.1
• One slot
• Power supply: +5V, +3.3V, +12V, -12V DC
• 32/64 bit

Watchdog Timer:

• Provided by CPU

Real Time Clock:

• EPSON® RTC-8564JE™

Front Panel:

• 2x 10/100/1000 BASE-T (using RJ-45 connector)
• 4x RS-232 (using RJ-45 connector)

Bus:

• VME bus
• Width complies with A32/A24/A16 D32/D24/D08(EO) Rev.C.3
• Functions: master/slave, system controller, interrupter, interrupt handler, DMA controller

RoHS:

• Lead-free

Power Supply:

• Single +5V DC

Power Consumption:

• 15W max (excluding PMC)

Mechanical:

• Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot -20.02 (0.79”)
• Weight: 320g

Operating Temperature:

• 0 to 60°C

Humidity:

• 35 to 85% non-condensing

Operating Systems Supported:

• VxWorks®
