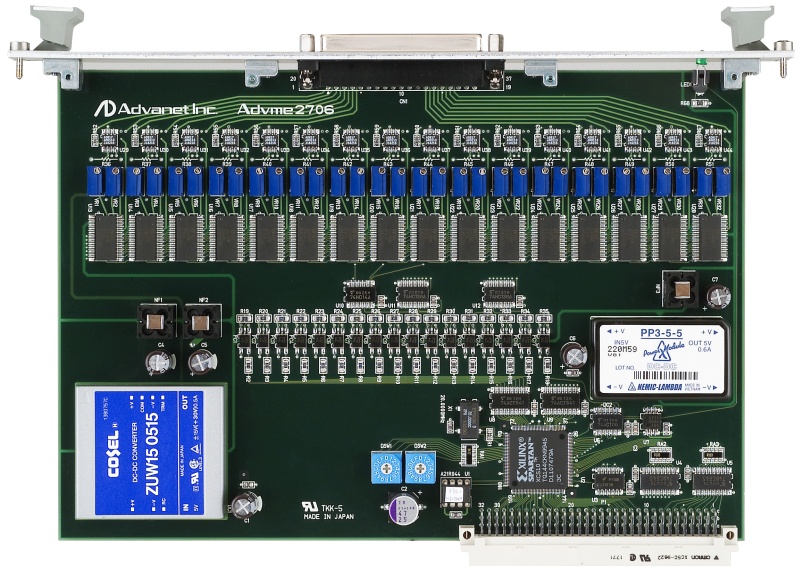

The Advme2706 is a 16-bit resolution, VME bus compliant board with a 16-channel D/A converter.
A ±10V output range can be expanded to ±12V by installing a resistor for output range expansion.
All channels are equipped with an independent trimmer for gain and offset adjustment, allowing highly accurate adjustment for each channel.
Isolation
Output channels are isolated from the VME bus.
It is equipped with an output short-circuit protection function.
Other Features
Operates from a single +5V power supply by VME bus.
When the power is turned on and when reset is performed, the output voltage is forced to 0V.
LED lamp indicates bus access.
C-language sample program is provided.
Device driver for VxWorks® available as an option.

Architecture:

• VME compliant

Analog output:

• Number of channels: 16 channels (single-ended)
• Output range: ±10 V DC (can be expanded to ±12 V DC by installing a resistor)
• Output current: up to ±5mA
• Output impedance: o.35Ohm typical
• Output short-circuit protection: continuous
• Output current: up to ±5mA

D/A conversion:

• Resolution: 16-bit
• Linearity error: ±1LSB (at 25°C) ±2 LSB (operating temperature range)
• Monotonicity: 15-bit (operating temperature range)
• Gain error: all channels equipped with an independent gain adjustment trimmer

up to ±0.01% (with adjustment) typical
±0.2% (without adjustment)

• Offset error: all channels equipped with an independent gain adjustment trimmer

up to ±0.5mV (with adjustment)
10mV (without adjustment)

• Conversion time: up to 1µs per channel (time to transfer data to DAC)
• Temperature characteristics: Up to ±25ppm/°C
• D/A converters: x16 Analog Devices® AD660BR™

Output buffer (OP-amp Specification):

• Input offset electric current: 0.5mV
• Input offset voltage: 2.5nA
• Input bias electric current: 3.3µA
• Trough rate. 350V/µs (RLOAD=1kOhm)
• Common-mode rejection ratio: 120dB
• Power supply rejection ratio: 86dB
• Max power voltage: 13.7V (RLOAD= 1kOhm)
• OP-amp: x16 Analog Devices® AD817AR™

Isolation:

• Method: photo-coupler (between output channels and VME bus)
• Withstanding voltage between output and system: 1500V AC for one minute
• Withstanding voltage between output and channels: non-isolated

Output Connector:

• 37-pin Dsub female connector

Bus:

• VME bus
• Width complies with: A16 D16/D08(EO) Rev.C.3
• Accessible using AM codes 29 and 2D

Power Supply:

• Single +5V DC

Power Consumption:

• 13.5W typical

Mechanical:

• Dimensions: 6U – 262 x 172 x 20 mm (10.31” x 6.77” x 0.79”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 360g typical

Operating Temperature:

• 0 to 60°C

Humidity:

• 10 to 90% non-condensing

Operating Systems Supported:

• VxWorks®
