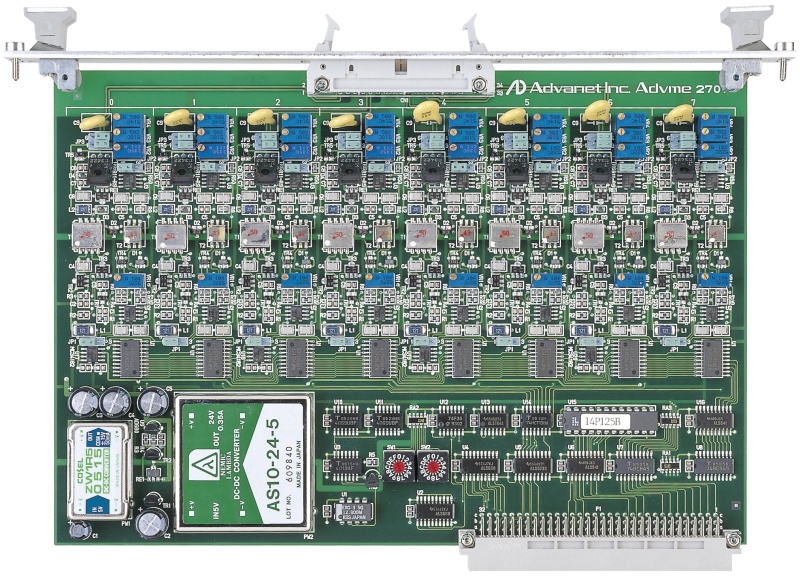

Advme2701

Isolated 8-channel D/A VME board

The Advme2701 is a 12-bit resolution analog output VME board with 8-channel I/O.
Output range can be set to ±10V, ±5V, 0 to 10V, 0 to 5V or 0 to20mA for each channel.

Not Recommended for New Design

HIGHLIGHTS

  • 12-bit resolution
  • Isolation of each channel
  • Device driver for VxWorks® (option)

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The Advme2701 is a 12-bit resolution analog output VME board with 8-channel I/O.
Output range can be set to ±10V, ±5V, 0 to 10V, 0 to 5V or 0 to20mA for each channel.
Isolation
Each channel is isolated with a transformer.
Other Features
Operates from a single +5V power supply by VME bus.
Device driver for VxWorks is available as an option.
It is capable of outputting current between 0 to 20mA without an external power supply.
