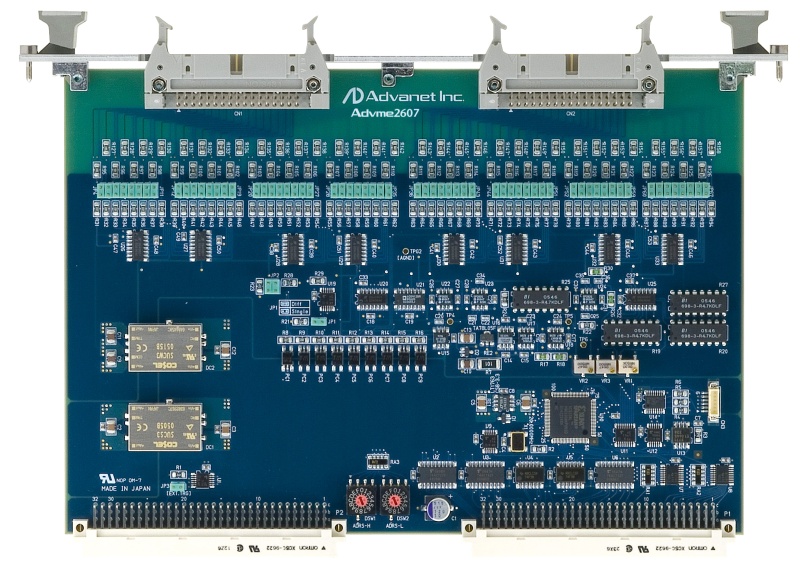

Advme2607

Isolated 64-channel A/D board

The Advme2607 is a 12-bit resolution, low-cost analog input VME board.
It is equipped with 64 single-ended and 32 differential input channels. Input is switched between single-ended and differential for all channels at once.

HIGHLIGHTS

  • 12-bit resolution
  • 64 single-ended or 32 differential input channels
  • Multiplexer for sequential A/D conversion
  • Analog circuits and digital circuits photo-coupler isolated

APPLICATIONS

  • Industrial
  • Medical
FeaturesSpecificationsAccessories

The Advme2607 is a 12-bit resolution, low-cost analog input VME board.
It is equipped with 64 single-ended and 32 differential input channels. Input is switched between single-ended and differential for all channels at once.
Jumper settings
The input range for all channels can be set at once to one of the following ranges: ±10V DC, from 0 to 5V DC or from 0 to 10V DC (from 4 to 20mA setting is available as an option).
Isolation
No isolation between input channels. Analog circuits and digital circuits are isolated by photo-coupler.
Conversion Features
Channels can be switched automatically using a multiplexer for sequential A/D conversion.
Conversion time of 1920µs for 64-channel batch conversion, and 960µs for 32- channel batch conversion.
Other Features
Operates from a single +5V power supply supplied by VME bus.
Device driver for VxWorks available (option).
