Advme2004

VME 4-axis Pulse Control Board equipped with PCL5014™

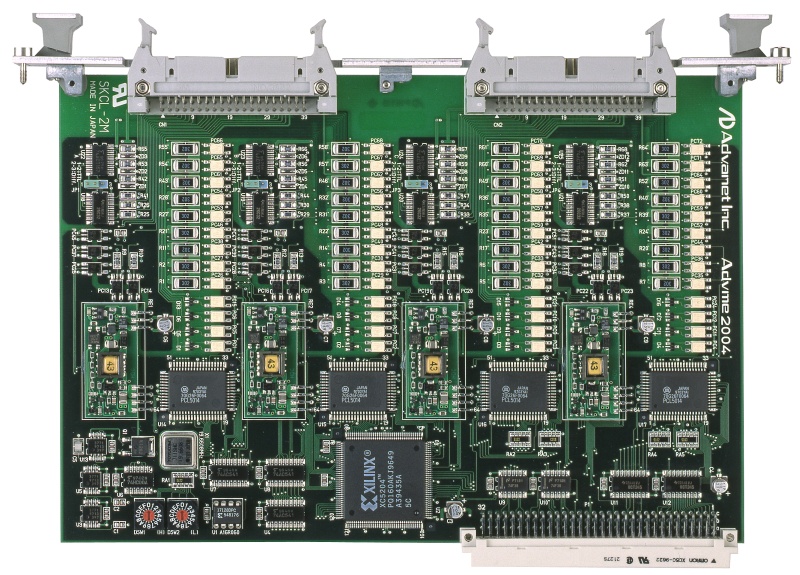

The Advme2004 is a VME board which features four PCL5014™ control chips for controlling speed and position of 4-axis pulse motors and servo motors.
Speed and acceleration can be changed during operation. Maximum pulse rate could be 1.2Mpps.

Not Recommended for New Design

HIGHLIGHTS

  • 4 channels
  • Controlling of pulse and servo motors
  • Rate up to 1.2Mpps
  • Supports micro step control
  • It can be used as counter board

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The Advme2004 is equipped with four Nippon Pulse Motor PCL5014™ control chips for controlling the speed and the positioning of 4-axis pulse motors and servo motors.
It is used to be connected to a pulse-input type pulse or servo motor driver. A sine waves control (S-curve for acceleration and deceleration) can be realized. Also support drivers with micro-step control.
Speed and acceleration can be changed during operation. Maximum pulse rate could be 1.2Mpps.
Channels
I/O signals are provided for interfacing with the motor driver and the limit sensor. Each channel has four general-purpose input points and four general-purpose output points.
Each channel has a built-in independent 28-bit length up-down counter and, if it is used in combination with a two-phase encoder, the Advme2004 performs as a counter board.
It provides general-purpose digital I/O and all I/O signals are photo-coupler isolated.
Device driver for VxWorks is available as an option.
Sample program is included as an accessory.
