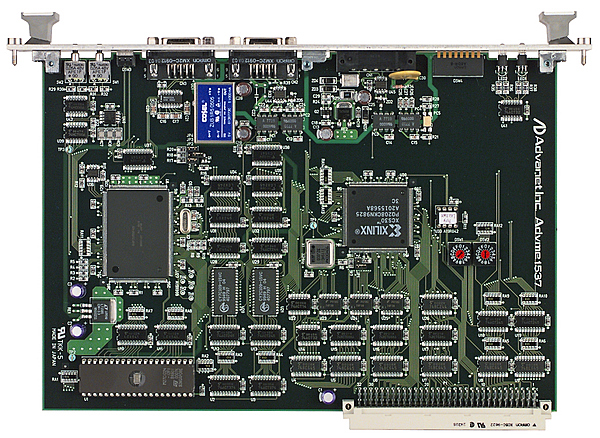

Advme1537

VMEbus board with DeviceNet and CAN functionalities

The Advme1537 is a VME communication board that can be used as DeviceNet (master/slave) or CAN board. It is equipped with a SH7055F™ processor. It features a tool for writing developed application programs.

Contact us for availability

HIGHLIGHTS

  • DeviceNet as master board
  • DeviceNet slave board
  • CAN board

APPLICATIONS

  • Semiconductor manufacturing equipment
  • Medical equipment
  • ECU simulators
  • Engine test benches
  • Automated warehousing
  • Industrial control equipment
FeaturesSpecificationsAccessories

The Advme1537 board is a DeviceNet/CAN Board equipped with SH7055F™.
When used together with other VME bus master boards it can operate as follows:
1 DeviceNet master board
As an intelligent slave type DeviceNet master board.
2 DeviceNet slave board
As an intelligent slave type DeviceNet slave board.
3 CAN board
As an intelligent slave type CAN board.
Device driver for VxWorks support
Device drivers provided to enable use as 1 to 3 above. (paid option)
Pre-installed firmware
Firmware is pre-installed on the SH7055F™ side to enable operation as an intelligent type DeviceNet (master/slave) or CAN board.
Standard-equipped with a T4th monitor
Standard-equipped with a remote debugger (T4th) to provide support for user development of application programs on the SH7055F™ side. It is equipped with a tool for writing developed application programs to the flash memory of the SH7055F™.
