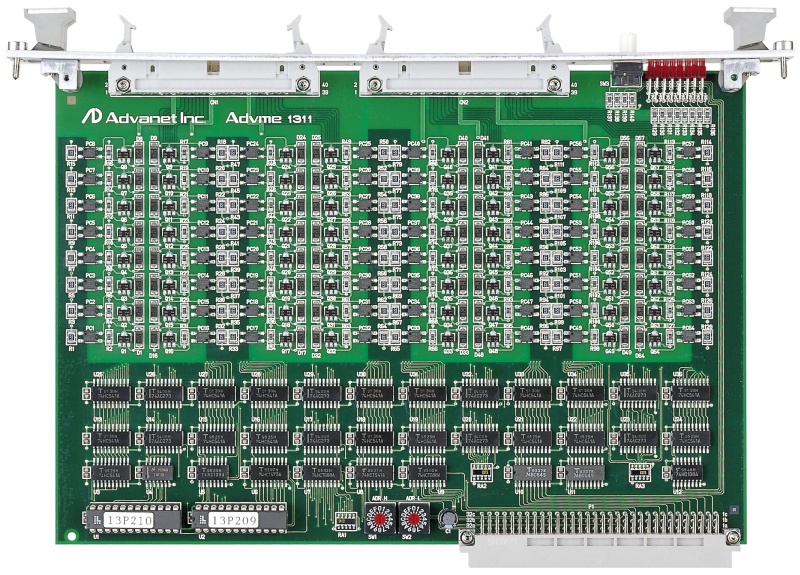

The Advme1311 is a VME digital output board that provides a 64-point output which is divided in eight channels. Each channel has a common and can handle digital signals using different power sources.
Isolation:
Photo-coupler isolation is provided between output channels and between each output channel and the VME bus.
Other features:
A switch on the front panel allows to display by LEDs one of the eight outputs. Device driver for VxWorks® is optionally available.

Architecture:

• VME compliant

Digital Output:

• Number of Channels: 64 (8 channels per common x8)
• Output voltage tolerance: up to 50V DC
• Load current: up to 200mA
• Output connector: two MIL-type 40-pin headers

Isolation:

• Isolation method: photo-coupler isolation
• Withstanding voltage between output and system: 1500V AC for one minute
• Withstanding voltage between output and channels: 1500V AC for one minute

Bus Interface:

• VME bus
• Width complies with A16 D16/D08(EO) Rev.C.3
• Accessible using AM codes 29H and 2DH

Power Supply:

• Single +5V DC

Power Consumption:

• 1W

Mechanical:

• Dimensions: 6U – 262 x 172 mm (10.31” x 6.77”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 330g

Operating Systems Supported:

• VxWorks®

Options:

• Device driver for VxWorks®
