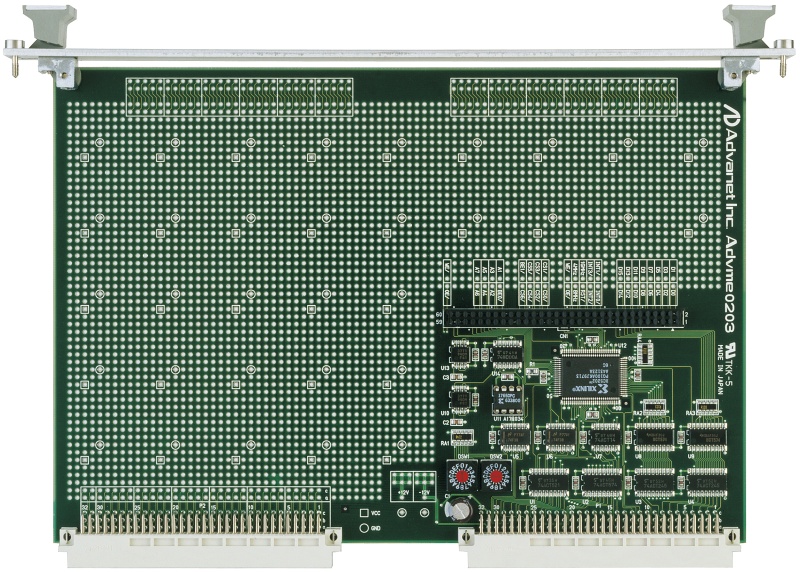

Advme0203

VMEbus universal board

The Advme0203 is a universal board that is used for prototype manufacture, testing and small-scale production of I/O boards. There are 4 interrupts that are provided. The user can program both interrupt vectors and interrupt levels.

Not Recommended for New Designs

HIGHLIGHTS

  • All pins in rows a and c on the P2 connector can be used as user-defined
  • 4x Interrupt inputs
  • Interrupt vectors and interrupt levels can be programmed using software

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The Advme0203 is ideal for the manufacture of special I/O boards. It is used also for prototype manufacture, testing and small-scale production of I/O boards. It can be used as a learning material for testing peripheral I/O boards with VME bus and interface circuitry.
It is fitted with a front panel and ejector handle.
It uses a four-layer PC board for superior noise resistance and it is equipped with a VME bus P2 connector, and all pins in rows "a" and "c" on the P2 connector can be used as user-defined.
It has four interrupt inputs. Interrupt vectors and interrupt levels can be programmed individually.
