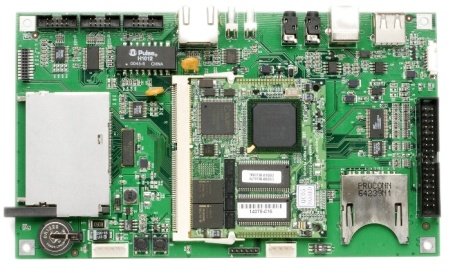

The TurboXb system, consisting of a processor module coupled with an application-specific personality board, is a full featured, low power, XScale based embedded computer system using the Marvell® PXA270 RISC microprocessor. The TurboXb is a complete applications solution under a single source.
Customization
With Eurotech's unique customization capabilities, the processor module can be readily integrated with a range of reconfigurable personality boards to meet customers' specific design requirements. The TurboXb offers an economical, reliable system to get products to market effectively and efficiently.

Architecture:

• SODIMM module with adapter board

CPU:

• Marvell® PXA270™ @ 520 MHz

Memory:

• DRAM: up to 128 MB
• Support for CompactFlash Type I and II
• Secure Digital (SD) and Multimedia Card (MMC) interface

USB:

• 1x USB 1.1 host port
• 1x full speed client port

Serial Ports:

• 3x EIA-232

Ethernet:

• 1x 10/100Mbps Ethernet
• RJ-45 connector

Other Interfaces:

• IC2 bus
• 4x analog inputs
• SPI

Video:

• 24-bit color LCD to SVGA
• 4 or 5-wire touchscreen interface

Audio Interface:

• AC 97 codec
• Stereo microphone input
• Stereo speakers outputs
• Stereo headphone output

Real Time Clock:

• Battery backed

Power Supply:

• Single +5V DC main power input
• 12V LCD backlight power input

Mechanical:

• Dimension: 180 x 104 mm (7.1” x 4.1”)

Operating Temperature:

• 0 to 70°C (standard)
• -40 to 80°C (extended)

Operating System Supported:

• Windows CE®, Linux®
