VULCAN

PC/104 format 533MHz Intel® XScale IPX425™ communications processor

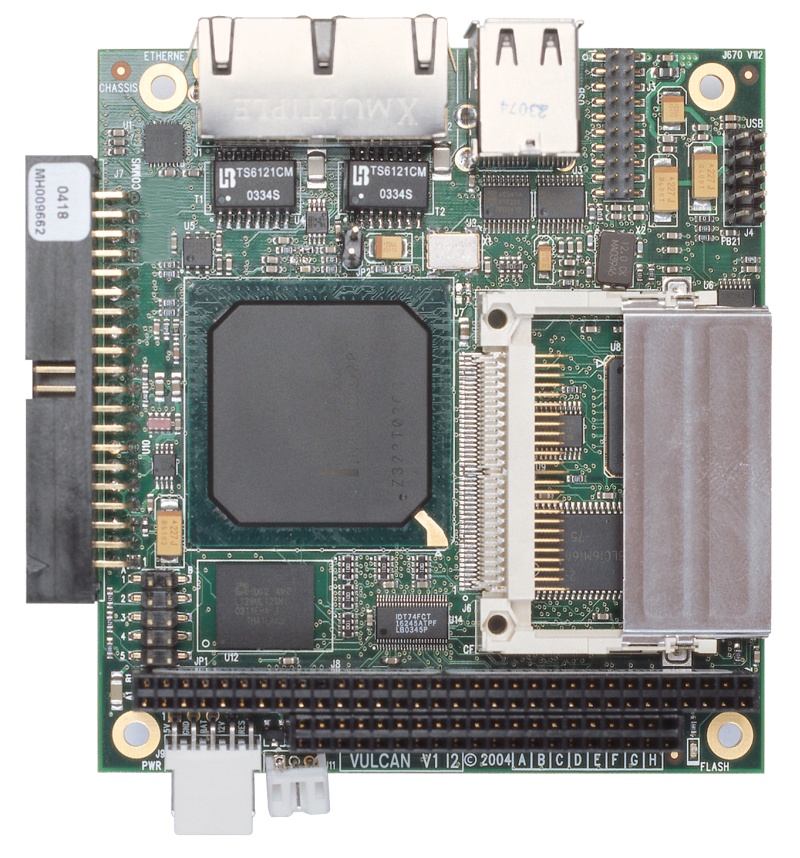

The VULCAN is a low power PC/104 compatible single board computer based on the Intel® XScale IPX425™ 533 MHz network processor. It has comprehensive set of integrated peripherals including two 10/100 Mb/s Ethernet interfaces, four USB 2.0 ports and four serial ports.
The board provides a fixed on board 32 MB Flash and the operating temperature range could be standard or extended.

Not recommended for New Design

HIGHLIGHTS

  • Intel® XScale IPX425™
  • PC/104 compliant
  • 3x RS232
  • 1x RS422/RS485
  • 2x Fast Ethernet controllers
  • 8 buffer digital inputs
  • 8 buffer digital outputs
  • 2x Watchdog Timers

APPLICATIONS

  • Communication gateway, secure encryption and authentication
  • Remote data acquisition
FeaturesSpecificationsAccessories

The VULCAN is a low power PC104 compatible single board computer based on the Intel® XScale IPX425™ network processor.
Interfaces
The IXP425™ is an implementation of the ARM compliant, Intel XScale microarchitecture combined with communication peripherals including, 2 high speed Ethernet MACs, hardware accelerated cryptography, 2 high speed serial ports, a local PCI interface and DMA controller.The VULCAN board adds to the IXP425™ features with 2 further serial ports, 4 USB 2.0 ports, real time clock and expansion via the CompactFlash (CF+) port and PC/104 bus.
