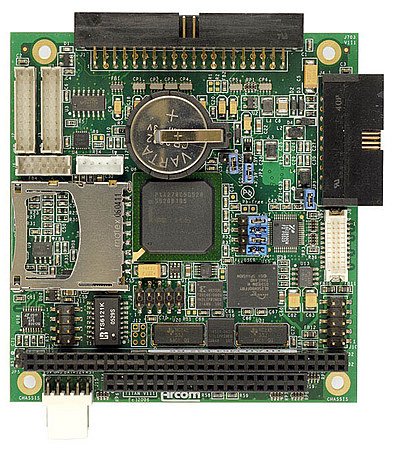

TITAN

PC/104 format 520MHz Marvell® XScale PXA270™ SBC

The TITAN is an ultra low power PC/104 compatible single board computer based on the 520MHz Marvell® XScale PXA270™ RISC processor.
The PXA270 is an implementation of the ARM compliant, Intel® XScale microarchitecture combined with a comprehensive set of integrated peripherals including, a flat panel graphics controller, USB host/client controller, interrupt controller, and multiple serial ports.

HIGHLIGHTS

  • Marvell® XScale™ PXA270
  • PC/104 compliant
  • 4x RS-232 ports
  • 1x RS-232/422/485 port
  • AC97 Audio Controller
  • TFT/STN/LVDS flat panel support

APPLICATIONS

  • Multi-media interface panels
  • Space constrained enclosures
  • Multi-media machine control applications
  • Power-sensitive embedded communications
FeaturesSpecificationsAccessories

The TITAN is an ultra low power PC/104 compatible single board computer based on the 520MHz Marvell® XScale PXA270™ RISC processor.
Interfaces
The board includes a set of integrated peripherals: a flat panel graphics controller, USB host/client controller, interrupt controller, and multiple serial ports.
Power consumption
The TITAN offers a long list of features making it ideal for power-sensitive embedded communications and multimedia applications. The board has been designed to take advantage of the power saving modes of the PXA270™ RISC processor and other onboard peripherals, to achieve an incredible 1.5W maximum power consumption. The TITAN also supports very low power sleep and deep sleep modes.
The TITAN is perfect for applications such as multi-media interface panels, in spaceconstrained enclosures or mounted directly behind a flat panel for Windows CE-based multi-media machine control applications. The ultra-low power dissipation means you don’t need a fan or ventilation for system cooling.
