PC/104+ Module with DOS and true ISA compatibility


• Vortex86DX processor at 600MHz
• x86 compatibility
• True ISA and DOS compatibility
• Fanless (less than 4W)
• Integrated video
• Long term availability
• Extended temperature range


• Upgrade platform for legacy DOS applications
• PLC and machine controllers
• Industrial gateways
• Rugged Thin Client PCs
• Low Power, fanless systems

General DescriptionFeaturesSpecificationsAccessories

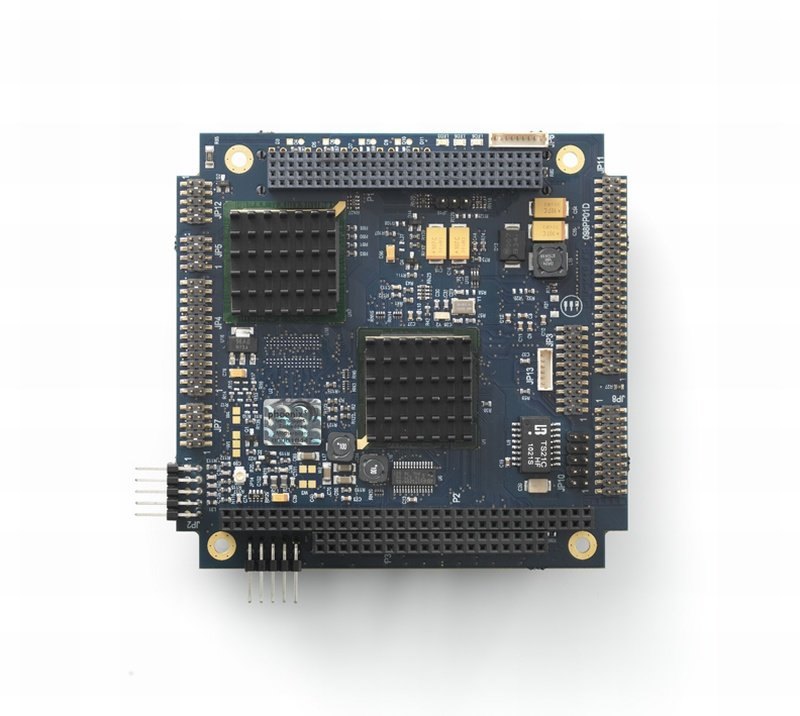

The CPU-1440 is a low power processor aimed at PC/104 embedded applications. It provides x86 compatibility for legacy applications using DOS, as well as supporting Linux and Windows CE for more current applications. Featuring soldered down RAM and flash, and with options for extended temperature (-40 to +70°C) operation, it is ideal for installations requiring rugged construction and high reliability, such as those in industrial and transportation applications.

The CPU-1440 supports Microsoft DOS 6.22, Windows CE 6.0 and Linux 2.6.
