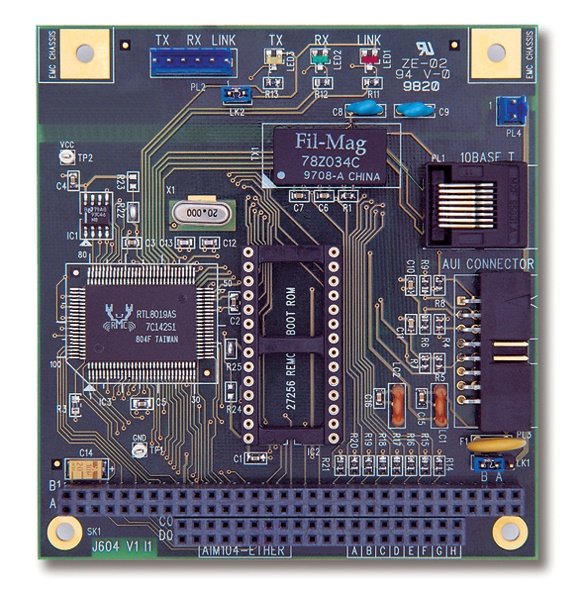

The AIM104-ETHER is a high performance 16-bit Ethernet interface module. The module is compliant to Ethernet II and IEEE8002.3 10-Base-T and is compatible with Novell® NE2000™ in both 8-bit and 16-bit operation. The module includes a built-in 10-Base-T transceiver and RJ-45 connector. An AUI connector supports external transceivers for 10-Base-2, 10-Base-5 and 10-Base-FOIRL, etc.
The AIM104-ETHER is supplied with a utilities disk that contains drivers for a wide variety of networks and operating systems. An optional boot ROM lets you boot a remote PC/104 station automatically from a server making floppy and hard drives unnecessary.

Architecture:

• PC/104

Memory:

• Boot ROM socket, driver and configuration software disk

Ethernet:

• IEEE802.3 compliant, based on Realtek® RTL8019AS™
• Novell® NE2000™ compatible
• 16-way AUI and RJ-45 10 BASET connections
• Three LEDs
• IRQ 2,3,4,5,6,7

Bus:

• IEEE 996 bus interface 16-bit PC/104

Power Supply:

• Single +5 V DC

Power Consumption:

• 1W max

Operating Temperature:

• -20 to 125°C
