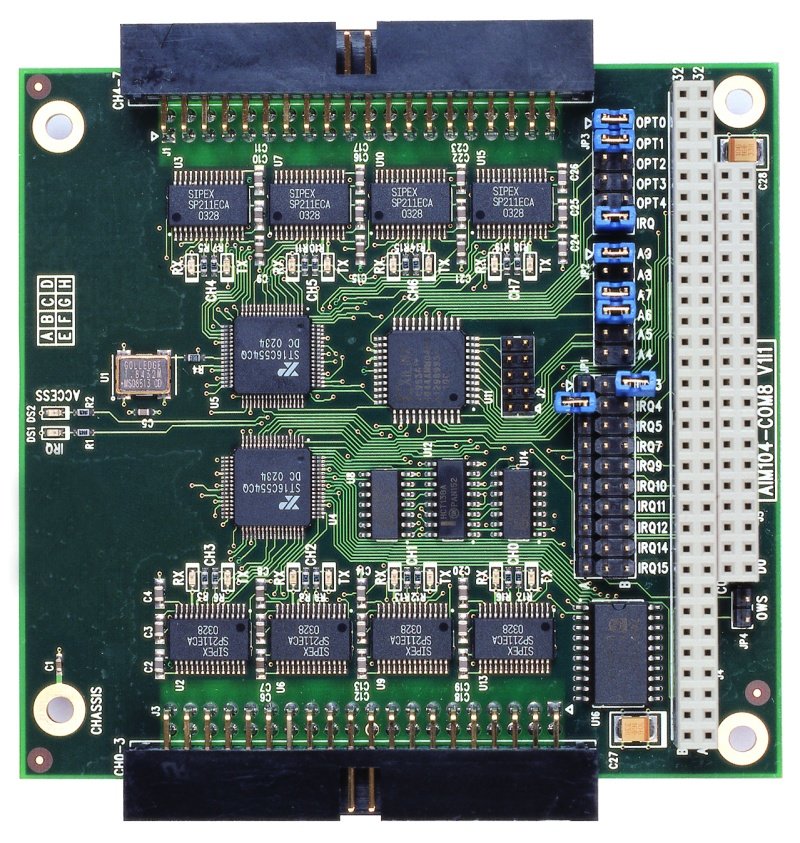

AIM104-COM8
8 channel RS-232 asynchronous (16C550) serial communication interface PC104 module
The AIM104-COM8 is an 8-bit or 16-bit PC/104 module that provides up to eight RS232 asynchronous communications channels.
HIGHLIGHTS
8x RS-232
TxD & RxD data
Supports rates to 115.2kBaud
2x QUAD 16C550 UARTS
APPLICATIONS
Industrial
Medical
Features
Specifications
Accessories
The AIM104-COM8 is an 8-bit or 16-bit PC/104 module that provides up to eight RS232 asynchronous communications channels.
Architecture:
PC/104
Serial Ports:
8x RS-232
2x QUAD 16C550 UARTS (Exar 16C554)
Supports rates to 115.2kBaud (asynchronous)
TxD & RxD data
full modem control lines
CTS, RTS, DCD, RI, DSR and DTR
Addressing using standard PC-AT COM port addresses for the first 4 ports (COM1-4) and/or fully user selectable addresses for all 8 ports
Link-selectable interrupt for one common interrupt or 2 interrupts for each quad
UART - IRQ3 to 15
Rx and Tx activity LEDs for each channel
Module access LED
Bus:
PC/104 Interface: 16-bit i/f connector (can also be used in 8-bit stack)
Power Supply:
Single +5V DC
Power Consumption:
1.1W max
Mechanical:
Dimension: 96 x 90 mm (3.8” x 3.5”)
Operating Temperature:
-20 to 70°C
MTBF:
180,000 hours
Features
The AIM104-COM8 is an 8-bit or 16-bit PC/104 module that provides up to eight RS232 asynchronous communications channels.
Specifications
Architecture:
PC/104
Serial Ports:
8x RS-232
2x QUAD 16C550 UARTS (Exar 16C554)
Supports rates to 115.2kBaud (asynchronous)
TxD & RxD data
full modem control lines
CTS, RTS, DCD, RI, DSR and DTR
Addressing using standard PC-AT COM port addresses for the first 4 ports (COM1-4) and/or fully user selectable addresses for all 8 ports
Link-selectable interrupt for one common interrupt or 2 interrupts for each quad
UART - IRQ3 to 15
Rx and Tx activity LEDs for each channel
Module access LED
Bus:
PC/104 Interface: 16-bit i/f connector (can also be used in 8-bit stack)
Power Supply:
Single +5V DC
Power Consumption:
1.1W max
Mechanical:
Dimension: 96 x 90 mm (3.8” x 3.5”)
Operating Temperature:
-20 to 70°C
MTBF:
180,000 hours
