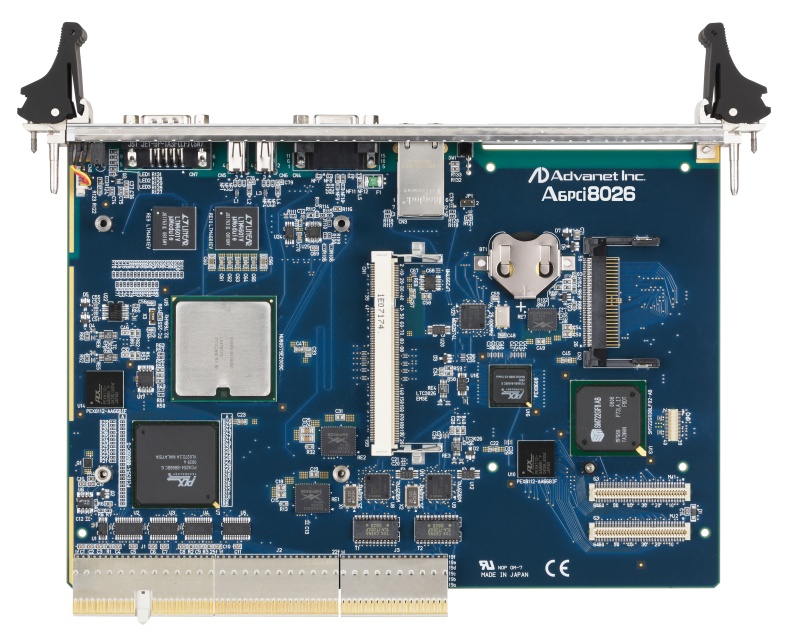

A6pci8026

Intel® EP80579™ CPU CompactPCI board

The A6pci8026 is a CompactPCI bus-compatible 6U size CPU board equipped with Intel® EP80579™ system on chip which integrates a PentiumM™ processor. The 2GB main memory supports ECC.

Not recommended for New Designs.

HIGHLIGHTS

  • Intel® EP80579™ System on Chip
  • 2GB SO-RDIMM with ECC
  • x1 PMC slot
  • CompactFLASH slot
  • VGA port

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The A6pci8026 is a CompactPCI bus-compatible 6U size CPU board equipped with Intel® EP80579™.
System on Chip
Intel® EP80579™ is a SoC (System on Chip) that integrates various functions including the memory controller and I/O controller into the CPU core.
The CPU core is a PentiumM™ processor running at 1.2 GHz.
Memory
The A6pci8026 incorporates 2GB of PC2-4200-compatible SO-RDIMM main memory that supports the ECC capable of automatic correction of bit error (one out of 72 bits).
Other Interfaces
Coupled with the Compact PCI that is compatible with the system slot and peripheral slot, this CPU board has two Gigabit Ethernet ports, and one serial ATA port on the RearI/O.
The A6pci8026 is also equipped with one CompactFLASH slot and one PMC slot on board. One Serial port, one Gigabit Ethernet port, one VGA port, and two USB2.0 ports are provided on the front panel.
