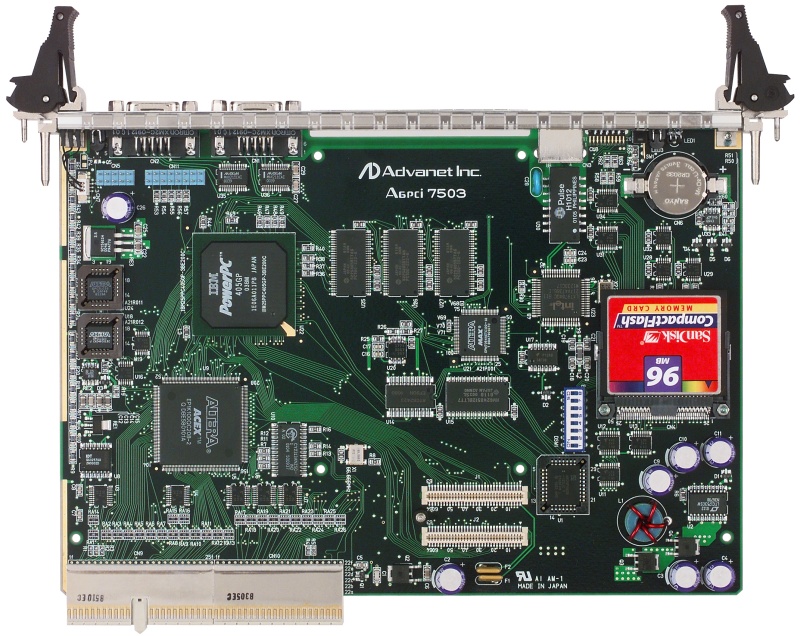

A6pci7503A

Freescale PowerPC PowerPC405GP™ CompactPCI CPU Board

CompactPCI bus CPU board with IBM® PowerPC405GP™ for low power consumption and high performance. Peripheral slot operation supports hotswap. BSP for VxWorks® available as a paid option.

Not Recommended for New Design

HIGHLIGHTS

  • PowerPC® 405GP™
  • BSP for VxWorks®
  • T4th™ boot loader
  • Hotswap support

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

CompactPCI bus CPU board with IBM® PowerPC405GP™ for low power consumption and high performance. Peripheral slot operation supports hotswap. BSP for VxWorks® available as a paid option.
I/O Interfaces
It features several I/O interfaces: 10/100Base-TX Ethernet, two RS-232C ports, CompactFlash and one PMC slot.
Memory
Main memory can be either 64MByte or 128MByte with ECC support.
Other Features
Advanet original PCI-PCI bus bridge (SETO-2™) is used for system slot and peripheral slot support.
Two-digit seven segment LED is provided to display software status, etc.
T4th™ boot loader is available to boot application programs and OS from CompactFlash.
BSP for VxWorks® is provided as a paid option.
