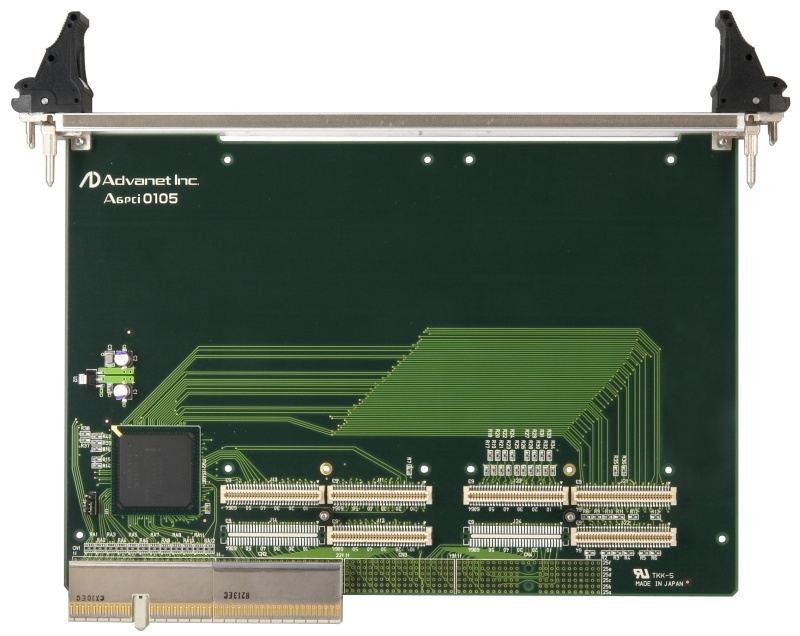

The A6pci0105 is a CompactPCI 6U-size PMC carrier board with two PMC slots. It is designed for peripheral use only (cannot be equipped with a PrPMC module). It is equipped with transparent PCI-PCI bus bridge (Intel® 21154™ or equivalent) for 64-bit 66MHz PCI bus support.

Architecture:

• CompactPCI

PMC:

• Standard: IEEE 1386.1
• Two slots
• 32/64 bit

Bus:

• PCI bus
• Intel® 21154™ bridge
• Signaling level: +5V, 3.3V DC
• Data width: 32/64 bit
• Address width: 32/64 bit
• Bus speed: 66MHz or less (33MHz when VIO is 5V DC)

Power Supply:

• +5V DC
• +3.3V DC

Mechanical:

• Dimensions: 6U – 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 250g
